Applications:
- Metering (electrical energy meters)
- AC Voltage measurement
- Sensing Overload Current
- Ground fault detection
- Household electrical equipment
- Industrial apparatuses
- Electrical testing equipment and relay protection

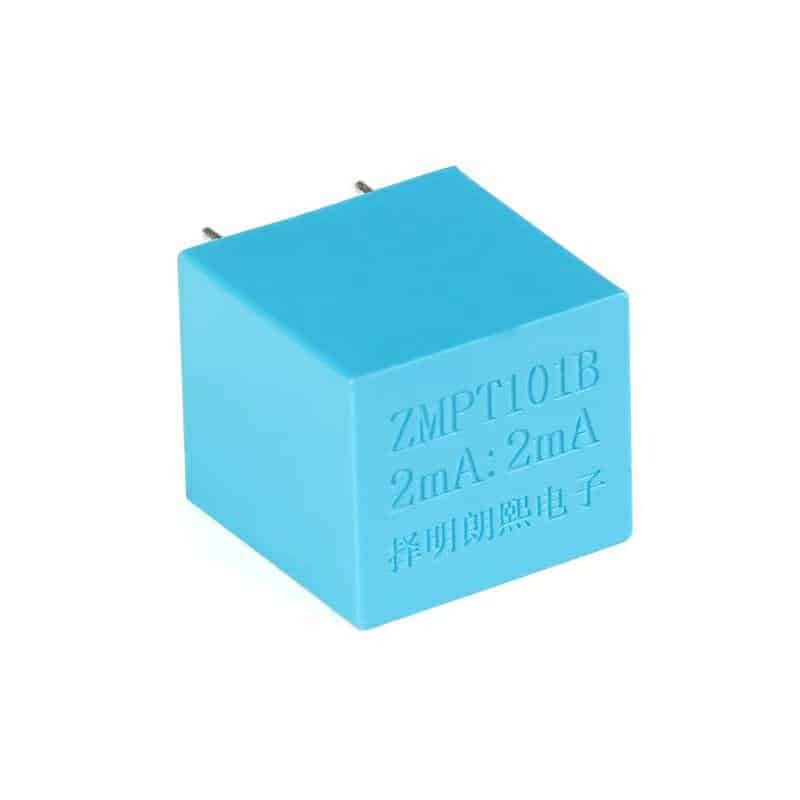

Features of ZMPT 101B Micro Precision Voltage Transformers
- low price
- Small size (49.5mm x 19.4mm) and lightweight
- Easy PCB mounting
- Good consistency
- widely acclaimed
| Specifications | Discriptions |
|---|---|
| Rated input current | 2mA |
| Rated output current | 2mA |
| Linear range | 0~1000V 0~10mA |
| Isolation withstand voltage | 4000V |
| Turns Ratio | 1000:1000 |
| Measurement accuracy Class | 0.2 |
| Linearity | 0.1% |
| Rated Burdon | <=200Ohm |
| Operating Frequency | 50-50Hz |
| DC coil Resistance | 110 @ 20 deg Cel |
