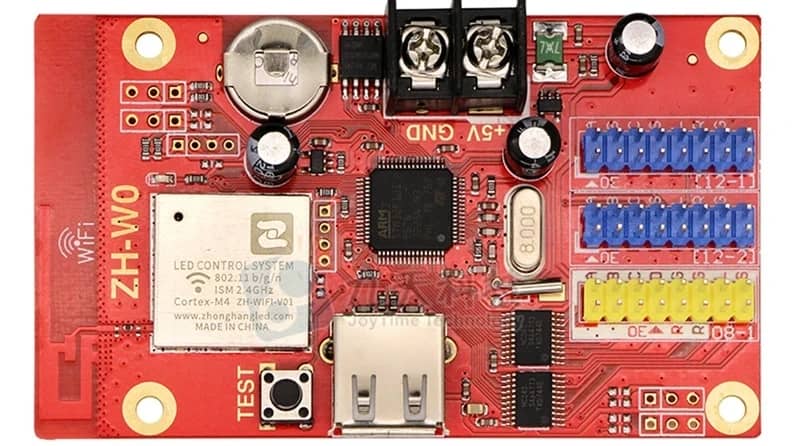

ZH-W0 wireless Control board for LED display

ZH-W0 WIFI single double color p10 rgb display led control card ZH-W0

Function advantages: Truly free wiring; simple operation; without any subsequent cost; simple point to point communication; can automatically search WiFi network and establish reliable connection.

Data transmission: 1. In general, laptop can spread through the distance of 100 meters directly; desktop computer can communicate with wireless controller through the wireless network card. 2. Laptop can connect directly, control card owns router function; desktop can connect through the wireless net card. 3. Available in the area with WiFi coverage, such as airport, high-speed rail station, smart building, etc.

Technical parameters:

Main functions: data wireless transparent transmission; support 100M Ethernet net; support TCP/IP/UDP network protocol stack; support routing/bridge model network frame; support 802.11 b/g/n wireless standards.

Maximum power: =3W

distance suggestion: =100 meters)

Wireless standard: 802.11 b/g/n

Working voltage: +4.5V~6V

Working temperature: -30?~70?

Working frequency band: 2.412 GHz to 2.484 GHz

Configuration antenna: 2.4 GHz special inside-antenna

Maximum transmission distance: 200M (the actual application transmission

Receiving sensitivity: = (802.11 b: - 89 DBM, 802.11 g: - 81 DBM, 802.11 n: - 71 DBM).

Application note: 1. The latest research products; compact structure; fine craft; concise installation; 2. Please use waterproof protection when you use it outdoors; 3. Pay attention to the placement of the antenna, the controller chip antenna should be placed outside.
