Xt60 Male connector
Xt60 Male connector
Regular price
₦800.00 NGN
Regular price
Sale price
₦800.00 NGN
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
XT60U
Rated Voltage: DC 500V
Flame Retardant Rating: UL94 V0
Rated Current: 30A
Recommended Wire: 12AWG
Instant (Peak) Current: 60A
Contact Resistance: 0.55 mΩ
Insulation Material: PA (Nylon)
Operating Temperature: -20°C to 120°C
Metal Material: Gold-plated copper
Safety Certification: UL / CE
Recommended Applications: Batteries, controllers

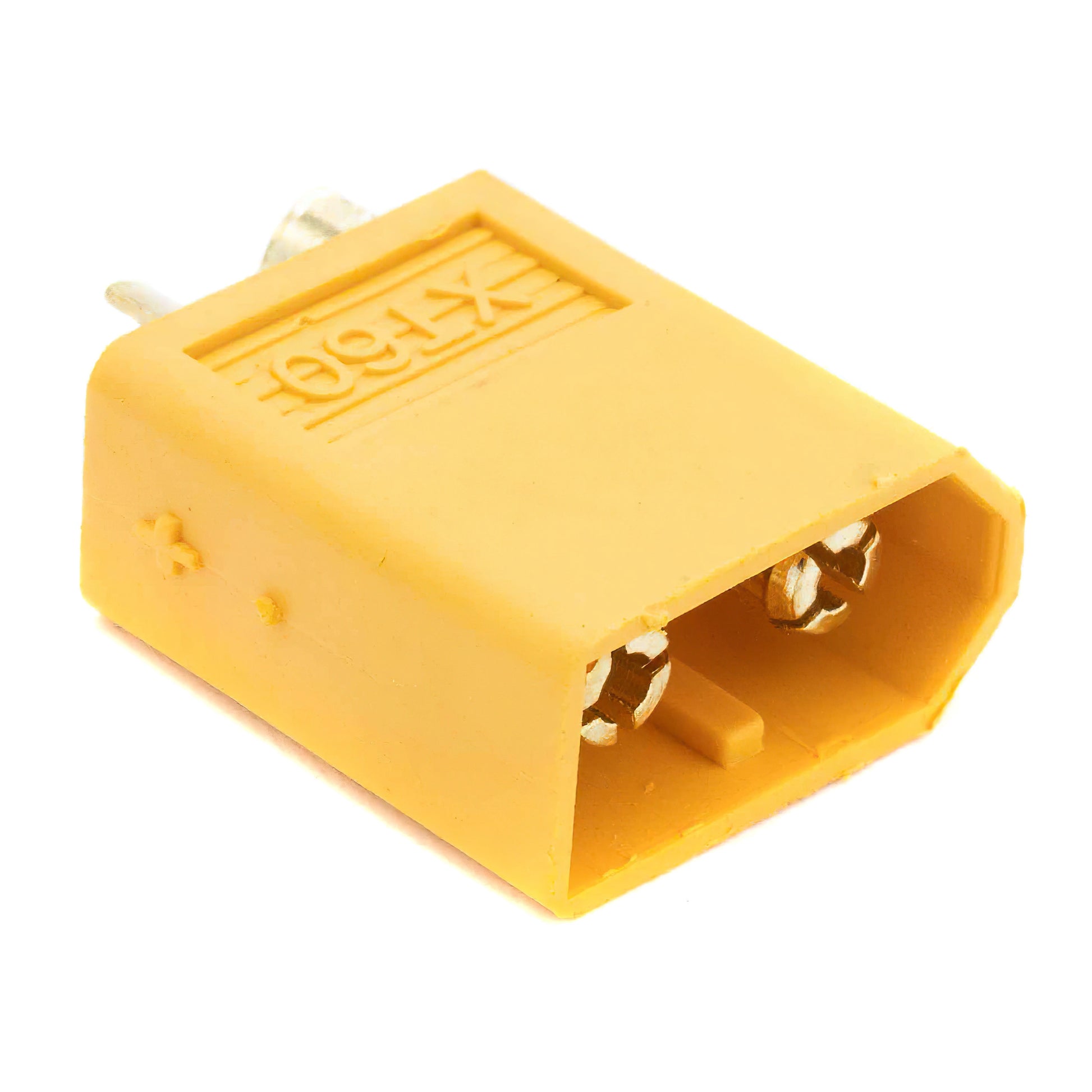

XT60U Male Connector (diagram shown below with dimensions).
