XL6019 Boost Converter Module

Specifications

• Model: XL6019 Boost Module
• Module Type: Isolated Boost
• Rectification Method: Synchronous Rectification

Input Range

• Absolute Limit: 4.5–40V
• Recommended Range: 6.5–35V

Output Voltage

• Absolute Limit: 5–45V
• Recommended Range: 5–40V

(Adjustable via potentiometer)

Input Current

• Absolute Limit: 0–5A
• Recommended Range: 0–3A

Conversion Efficiency:

• Up to 94%

Switching Frequency:

• 20KHz, Second-generation switching power technology

Output Ripple:

• Less than 100mV

Load Regulation:

• ±5%

Voltage Regulation:

• ±5%

Operating Temperature:

• Absolute Limit: -40°C to +150°C
• Recommended: -20°C to +85°C

Reverse Polarity Protection:

• Input side protected against reverse polarity up to 40V

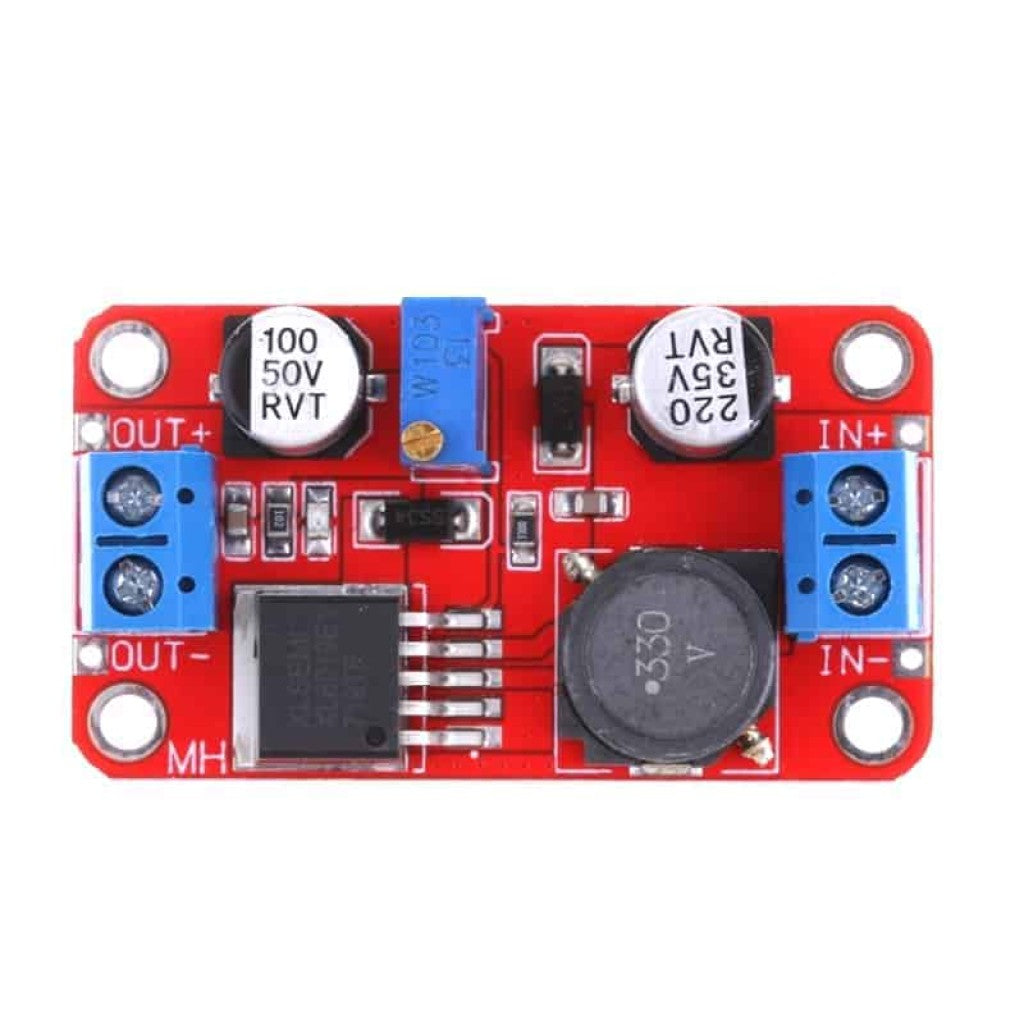

Annotated Diagram Labels (Bottom Image)

• VOUT+ / VOUT-: Output Voltage Terminals (5V–40V)
• VIN+ / VIN-: Input Voltage Terminals (3V–35V)
• Red LED: Output Indicator Light
• Multiturn Potentiometer: Used to adjust output voltage
  • Clockwise: Boost
  • Counter-clockwise: Buck
• Terminal Block: Convenient wiring terminal for input and output
• Electrolytic Capacitors: Labeled with their ratings (e.g., 50V 470µF, 35V 220µF).
