Microscale

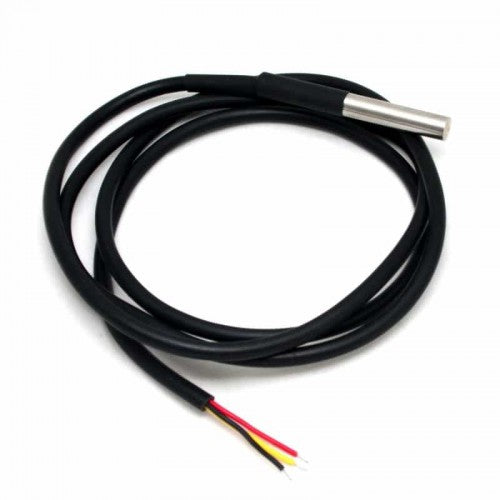

Waterproof DS18B20 temperature sensor
Waterproof DS18B20 temperature sensor
Couldn't load pickup availability
Description DS18b20 Temperature Sensors are digital, hence, you don’t get any signal degradation even over long distances! Furthermore, these 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. Also, they work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems. DS18b20 Temperature Sensor Features Probe DS18B20 temperature sensor chip Stainless steel pipe anti- rust waterproof package Stainless steel housing (6 * 50mm), lead length around 100cm 3.0V ~ 5.5V power supply 9 to 12 adjustable resolution Temperature range -55 ° ~ +125 ° Unique single bus interface Output leads : Red (VCC), Yellow (DATA), Black (GND)
