Microscale

Universal programmer TOP2013

Universal programmer TOP2013

Regular price ₦0.00 NGN
Regular price Sale price ₦0.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

TOP2013

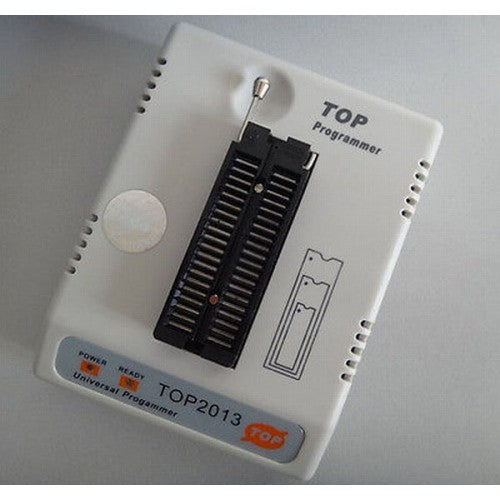

The TOP2013 is a universal programmer from Seeit. The TOP2013 is designed to work with components with up to 32 pin, from a range of manufacturers. These components include EPROMs, EEPROMs and FLASH memories. A full list of compatible devices can be found on the product datasheet. Featuring an ARM Cortex 32 core, the TOP2013 programmer is housed in a compact package. It also offers low-power loss and overcurrent protection. Simply plug the TOP2013 into a PC via USB cable. The TOP2013 automatically starts programming once it detects a device has been inserted correctly into the ZIF40 socket.

Technical Specification

  • ZIF40 socket (8-pin to 40-pin DIP packages)
  • USB interface
  • Supports 2.5 V to 6.5 V devices
  • USB or external 5 V power supply
  • Transmission speed: 12MHz/s
  • Overcurrent protection
  • Automatic pin status detection
  • Automatic detection manufacturer and type of IC
  • Supports Windows XP/VISTA/Windows 7/Windows 8.1/Windows10
  • Dimensions: 155 x 110 x 26 mm
  • Weight: 275 g
