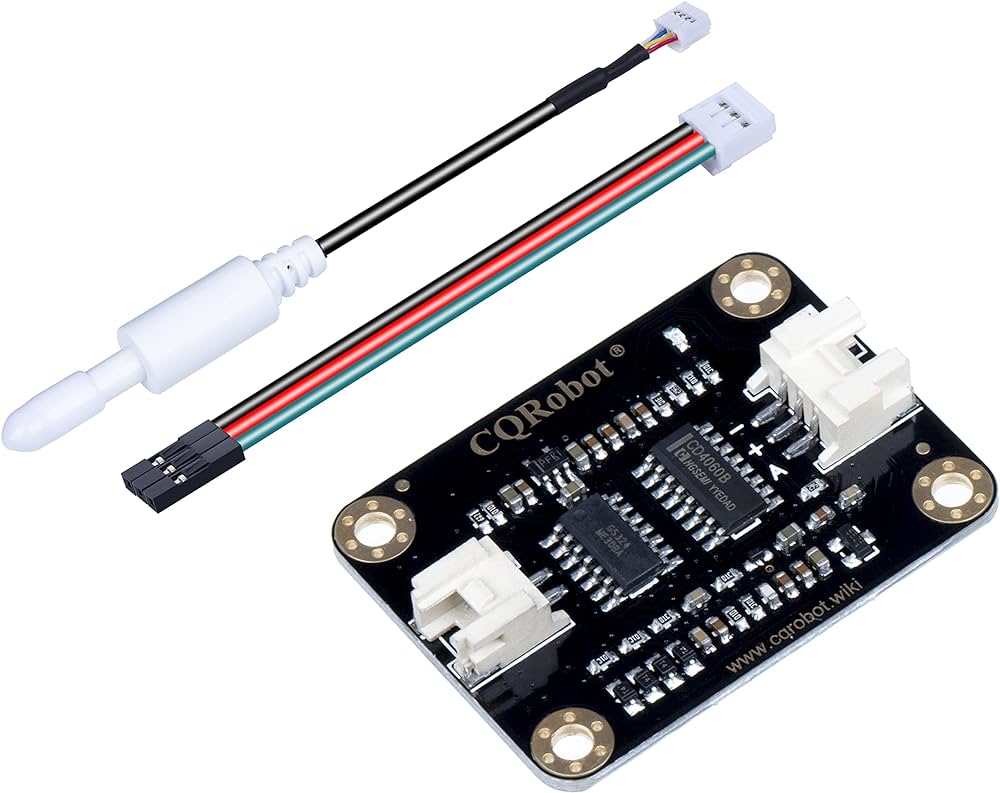

Total Dissolve Solid (TDS) meter

Total Dissolve Solid (TDS) meter

Regular price ₦10,600.00 NGN
Regular price Sale price ₦10,600.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Product Description


Pzsmocn TDS Instrument Sensor,Total Dissolved Solids Measuring Instrument,Can be Applied to Water Quality Detection in Domestic Water,Hydroponics and Other fields,Compatible with Raspberry Pi/Arduino Boards.

Note: When using the TDS instrument sensor, the sensor probe is immersed in liquid, and the purchaser needs to Separate the sensor Probe Protective Cover to avoid incorrect data reading and malfunction.
TDS (Total Dissolved Solids) indicates that how many milligrams of soluble solids dissolved in one liter of water. In general, the higher the TDS value, the more soluble solids dissolved in water, and the less clean the water is.

Signal Transmitter Board Specifications

- Wide Voltage Input : 3.3V to 5.5V
- Output Voltage: 0 to 2.3V
- Working Current: 3mA to 6mA
- TDS Measurement Range: 0 to 1000ppm
- TDS Measurement Accuracy: Plus/Minus 10% F.S. (25 Degree Celsius)
- Module Size: 43mm * 32.2mm
- Module Interface: JST 2.0mm 3-Pin
- Electrode Interface: JST 2.54mm 2-Pin
TDS Probe Specifications
- Number of Needle: 2
- Total Length: 83cm
- Connection Interface: JTS 2.54mm 2-Pin
- Color: Black
- Other: Waterproof Probe
Interface Cable Specifications
- Cable specifications: 22AWG
- Material: Silicone
- Withstand Voltage: Less Than 50V
- Withstand Current: Less Than 1000MA
- Length: 21cm
- Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-Signal Terminal.
