TLP250

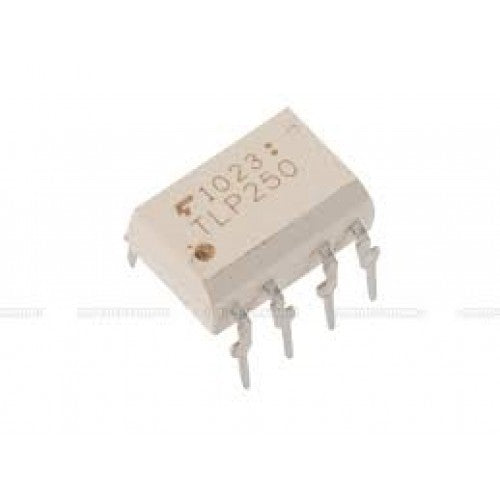

The TOSHIBA TLP250 consists of a GaAlAs light emitting diode and a integrated photodetector. This unit is 8-lead DIP package.TLP250 is suitable for gate driving circuit of IGBT or power MOS FET. The TLP250, like any driver, has an input stage, an output stage and a power supply connection. What’s special about the TLP250 is that the TLP250 is an optically isolated driver, meaning that the input and output are “optically isolated”. The isolation is optical – the input stage is an LED and the receiving output stage is light sensitive (think “photodetector”).

Technical Specification

• Input threshold current: IF=5mA(max.)
• Supply current (ICC): 11mA(max.)
• Supply voltage (VCC): 10−35V
• Output current (IO): ±1.5A (max.)
• Switching time (tpLH/tpHL): 1.5µs(max.)
• Isolation voltage: 2500Vrms(min.)
• UL recognized: UL1577, file No.E67349
• Maximum operating insulation voltage: 630VPK
• Highest permissible over voltage: 4000VPK
