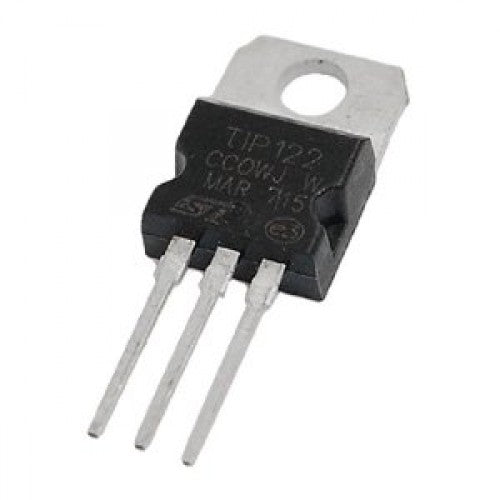

TIP122 Power Transistor

The TIP122 is a Darlington pair NPN transistor. It functions like a normal NPN transistor, but since it has a Darlington pair inside it has a good collector current rating of about 5A and a gain of about 1000. It can also withstand about 100V across its collector- Emitter hence can be used to drive heavy loads. This transistor is known for its high current gain (hfe = 1000) and high collector current (IC =5A) hence it is normally used to control loads with high current or in applications where high amplification is required. This transistor has a low Base-Emitter Voltage of the only 5V hence can be easily controlled by a Logic device like microcontrollers.

Technical Specification

• Darlington Medium-power NPN Transistor
• High DC Current Gain (hFE), typically 1000
• Continuous Collector current (IC) is 5A
• Collector-Emitter voltage (VCE) is 100 V
• Collector-Base voltage (VCB) is 100V
• Emitter Base Voltage (VBE) is 5V
• Base Current(IB) is 120mA
