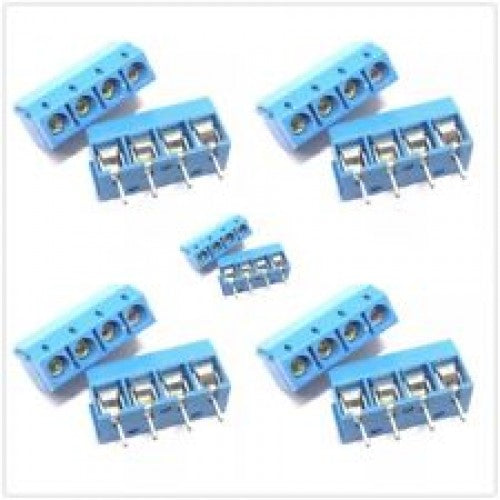

4pin screw terminal

These side-entry terminal blocks have terminals that hold and release wires through the simple adjustment of a small screw, allowing you to easily make temporary connections to a PCB. Since each terminal has a single corresponding pin spaced every 0.1″ (2.54 mm), these terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1″ male and female headers (if there is sufficient clearance from nearby components).

Technical Specification

• Dimensions (w/o pins): 11mm x 9mm x 6mm / 0.4" x 0.4" x 0.2"
• Pin Length: 3mm / 0.1"
• Weight: 1.0g
• Wire gauge: 26-20AWG
• Distance between terminal blocks: 2.5mm
