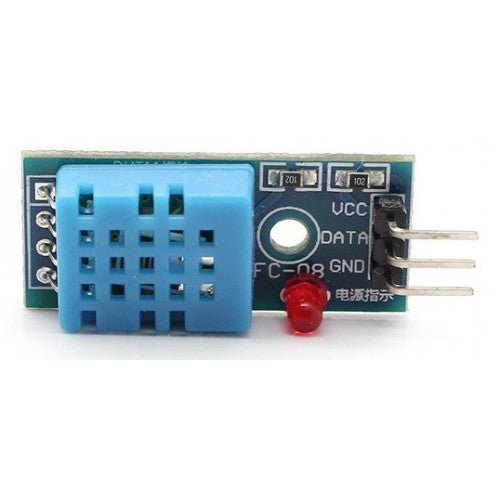

DHT11 Temperature and Humidity Sensor

The DHT11 is a commonly used Temperature and humidity sensor. The sensor comes with a dedicated NTC to measure temperature and an 8-bit microcontroller to output the values of temperature and humidity as serial data. The sensor is also factory calibrated and hence easy to interface with other microcontrollers.

The sensor can measure temperature from 0°C to 50°C and humidity from 20% to 90% with an accuracy of ±1°C and ±1%. So if you are looking to measure in this range then this sensor might be the right choice for you.

Technical Specification

• Operating Voltage: 3.5V to 5.5V
• Operating current: 0.3mA (measuring) 60uA (standby)
• Output: Serial data
• Temperature Range: 0°C to 50°C
• Humidity Range: 20% to 90%
• Resolution: Temperature and Humidity both are 16-bit
• Accuracy: ±1°C and ±1%
