TD-8120 20kg servo motor

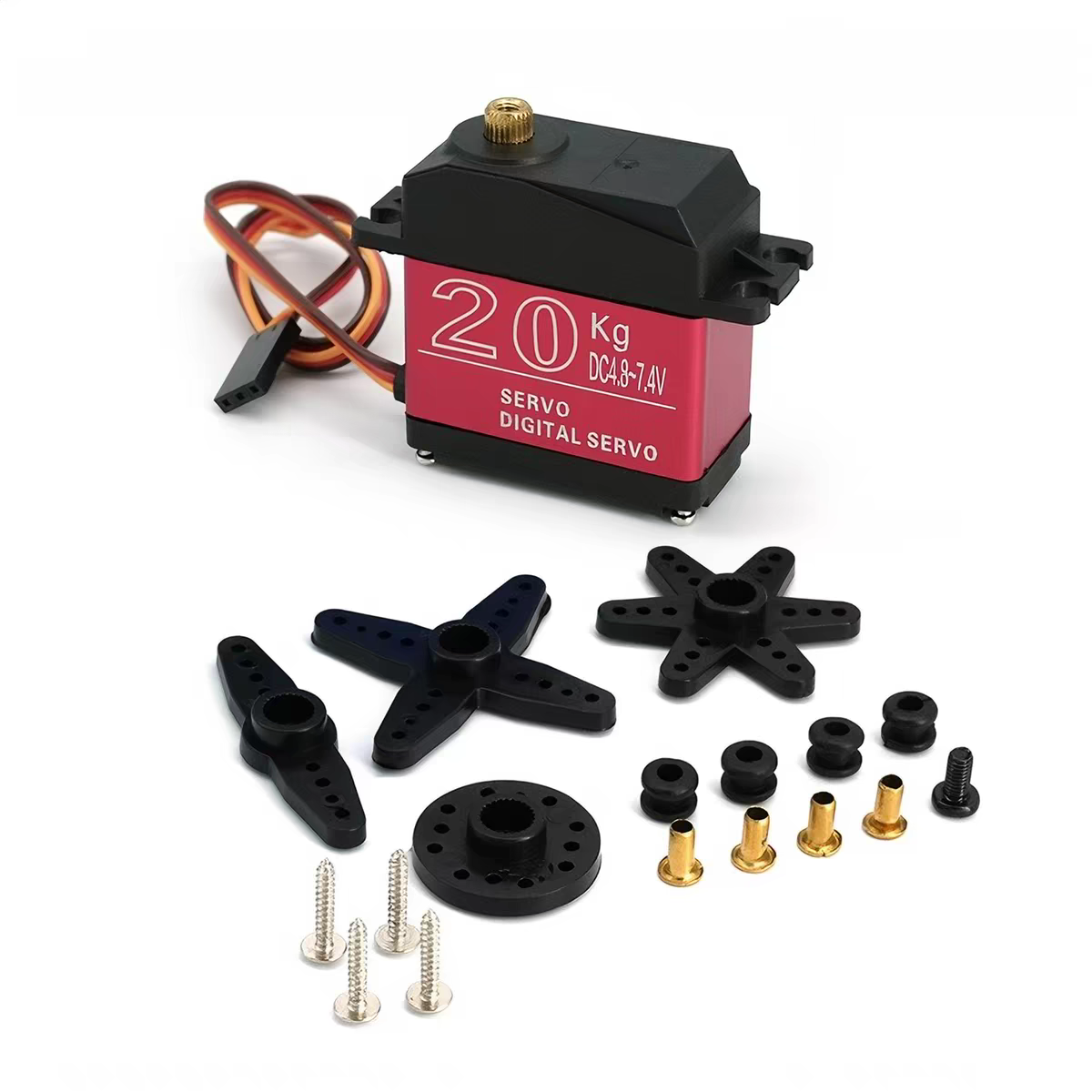

20KG Digital Servo – TD-8120MG

Equipped with multiple functional servo arms to meet the needs of different scenarios.

Uses imported dual ball bearings and imported metal gears, resulting in smaller backlash, higher precision, and lower noise.

Multiple waterproof designs to suit various applications.

Built-in advanced ASIC IC for processing servo signals. In addition to very fast response time, it offers high resolution (12+ bits or 4096+ steps), greater torque, and smoother, more precise movement at all angles.

Middle casing is CNC machined with anodized treatment, giving a stylish appearance and better heat dissipation.

Uses imported potentiometer (lifespan over 1 million cycles) for accurate positioning.

Default: 90°–180° universal

Red: power supply

Brown: ground

Orange: signal wire.

Specifications:

20KG Digital Servo – TD-8120MG

Model: TD-8120MG

Type: Standard servo

Gear: Metal gears

Size: 40 × 20 × 40.5 mm

Weight: 60 g

Speed:

0.22 sec / 60° @ 4.8V

0.18 sec / 60° @ 6.6V

Torque:

19.5 kg·cm @ 4.8V

22.8 kg·cm @ 6.6V

Operating Voltage :

4.8V – 6.6V
