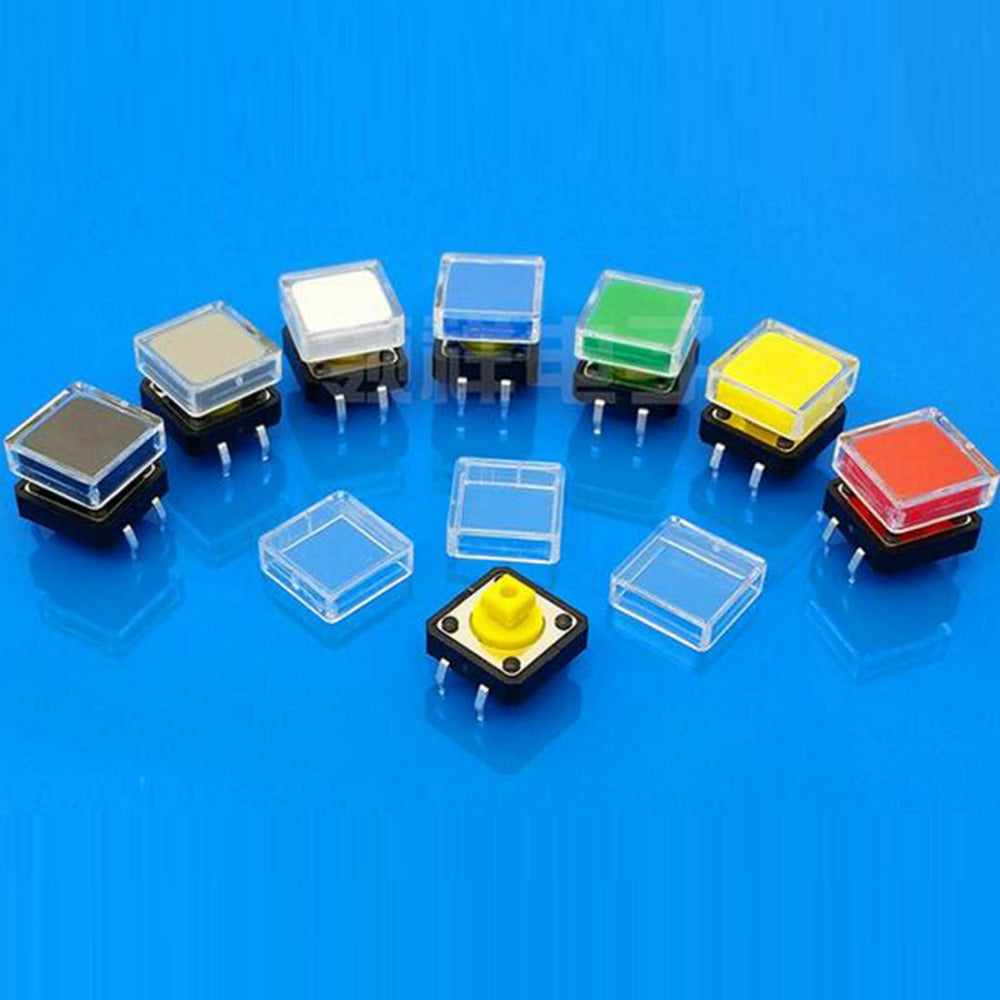

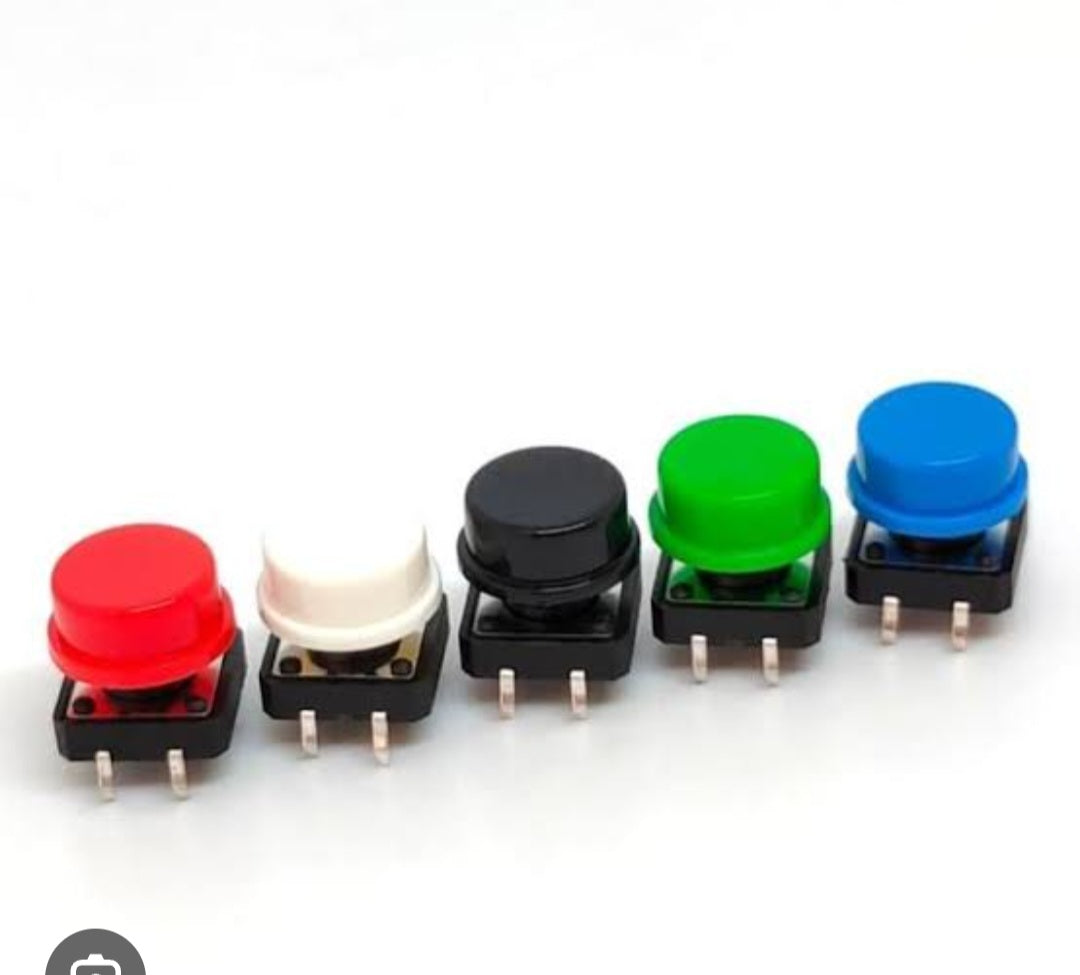

Tact switch B3-4055

Tact switch B3-4055

Regular price ₦270.00 NGN
Regular price Sale price ₦270.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Tact switch 12127.3mm

Used mainly on PCBs to close an electrical circuit, tactile switches turn on only when a certain amount of pressure is applied. You can find illuminated, surface mount, hinged and sealed tactile switches that are ideal for use in low-power devices that require operator feedback for proper functioning. Some applications include keyboards, keypads, radio, telephone and other consumer electronic

alt text

Technical Specification

  • dimensions: 12 x 12mm
  • height: 7.3mm
  • rating: 12Vdc - 50mA
  • insulation resistance: > 100Mohm - 250Vdc
  • withstand voltage: 100Vac 1 minute
  • contact resistance: < 100mohm
  • soldering temperature: 255°C for max. 5 seconds
  • mechanical life: 500000 cycles
  • electrical life: 300000 cycles
  • ambient temperature range: -25°C to +70°C
  • ambient humidity range: < 85% RH
  • operating force: 130 to 160 ± 30gf
