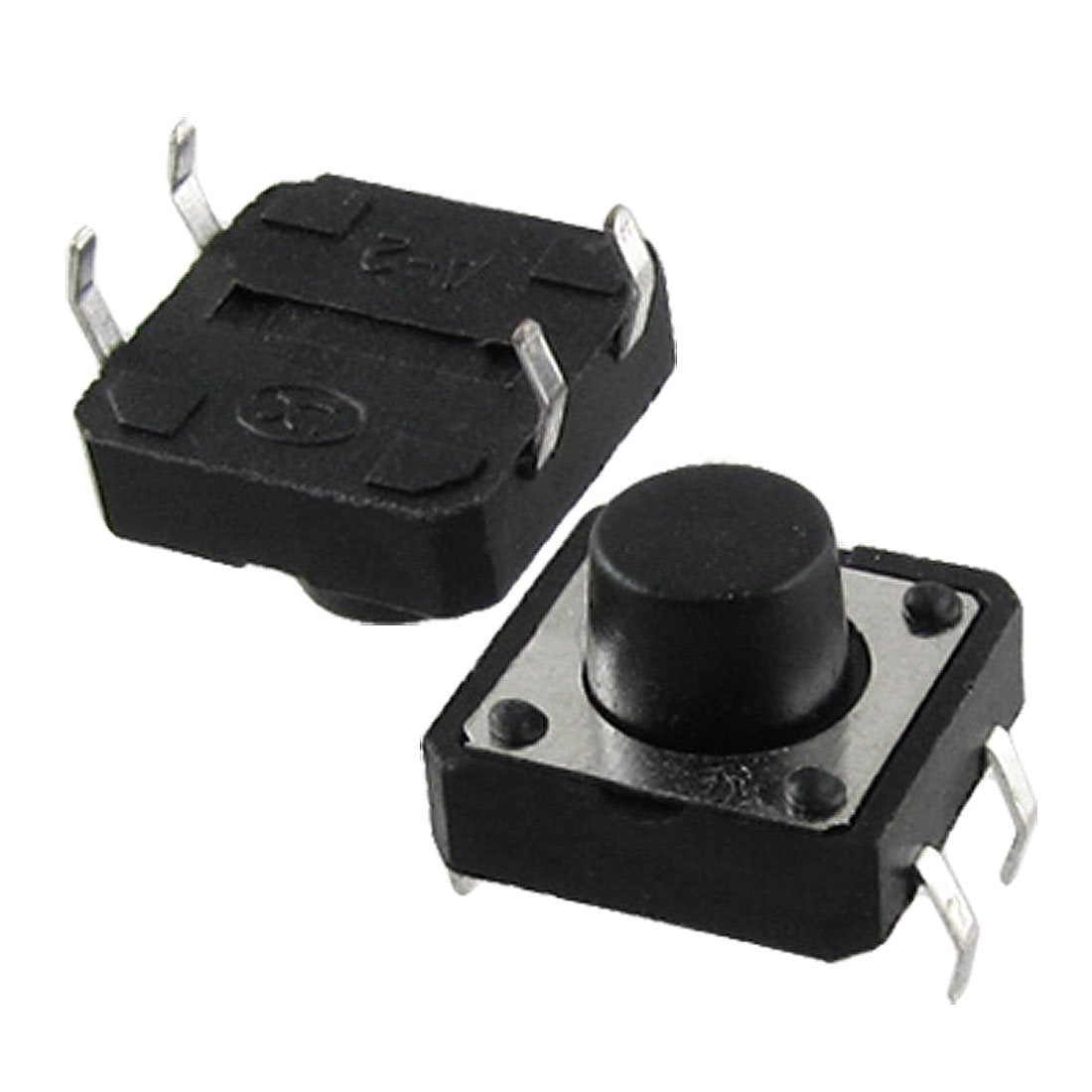

Tact switch 12*12*7.3mm

Tact switch 12*12*7.3mm

Regular price ₦180.00 NGN
Regular price Sale price ₦180.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Technical Specification:

dimensions: 12 x 12mm

height: 7.3mm

rating: 12Vdc - 50mA

insulation resistance: > 100Mohm - 250Vdc

withstand voltage: 100Vac 1 minute

contact resistance: < 100mohm

soldering temperature: 255°C for max. 5 seconds

mechanical life: 500000 cycles

electrical life: 300000 cycles

ambient temperature range: -25°C to +70°C

ambient humidity range: < 85% RH

operating force: 130 to 160 ± 30gf
