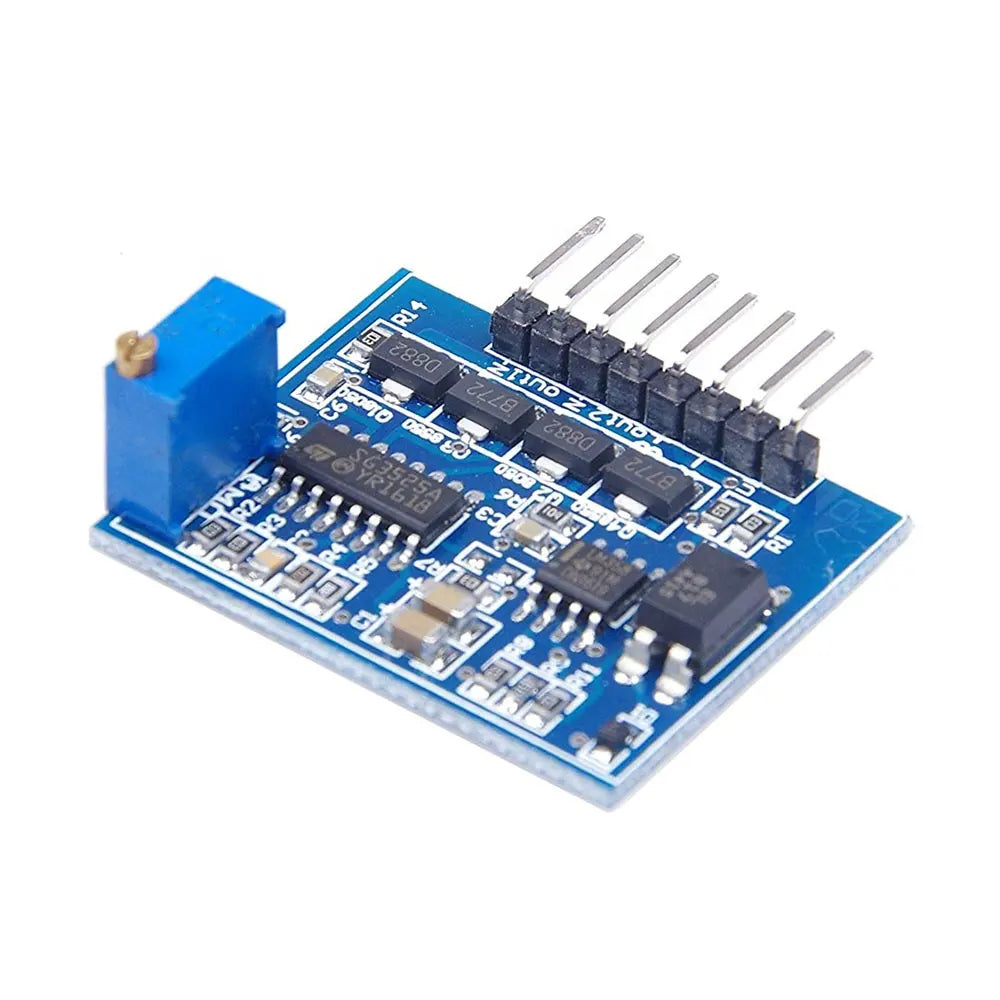

SG3525 With LM358 inverter driver board

Size: 35 × 30 (mm)

• Features:
• Adjustable frequency
  Overcurrent & short-circuit shutdown with self-locking protection
  Can regulate/stabilize the output voltage, with good performance

• Output current up to about 1A, capable of driving 20 × IRF3205 MOSFETs without issues


Power supply: 8–12V.

Pin Description:

1.Positive power supply

2.Signal output

3.Power supply negative (GND)

4.Signal output

5.Optocoupler input positive

6.Optocoupler output negative

7. Signal shutdown (shorting) pin

8.Signal feedback pin
