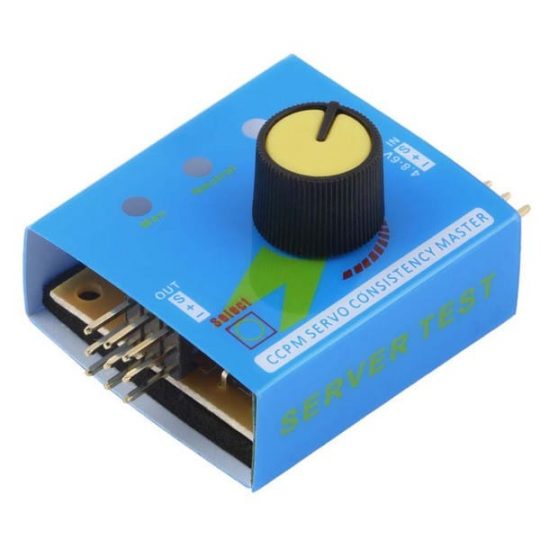

Servo Tester

This simple device can be used to operate or test servo motors. There are 3 modes to check servos;

Manual mode: turn the knob

Neutral mode: make the servo go back to the neutral point

Automatic: window wiper mode: make the servo swing like a window wiper in the biggest angle. Push button to change between modes. Lights indicate mode.

You can connect 1-3 servos simultaneously. It can also be used to check the operation of any servo motor whether fitted or not.

Specification

Output: 15mA (5.0)

Input: DC 4.2-6.0v

Output Signal: 1.5ms ± 0.5ms

Size: 46 * 32 * 17MM

Weight: 8g

Features:

Small size,low power consumption,high reliability and easy operation.

It can easily detect and configure server virtual bit, jitter and middle position.

Can connect two servos or ESC; MCU control,good stability,high accuracy.
