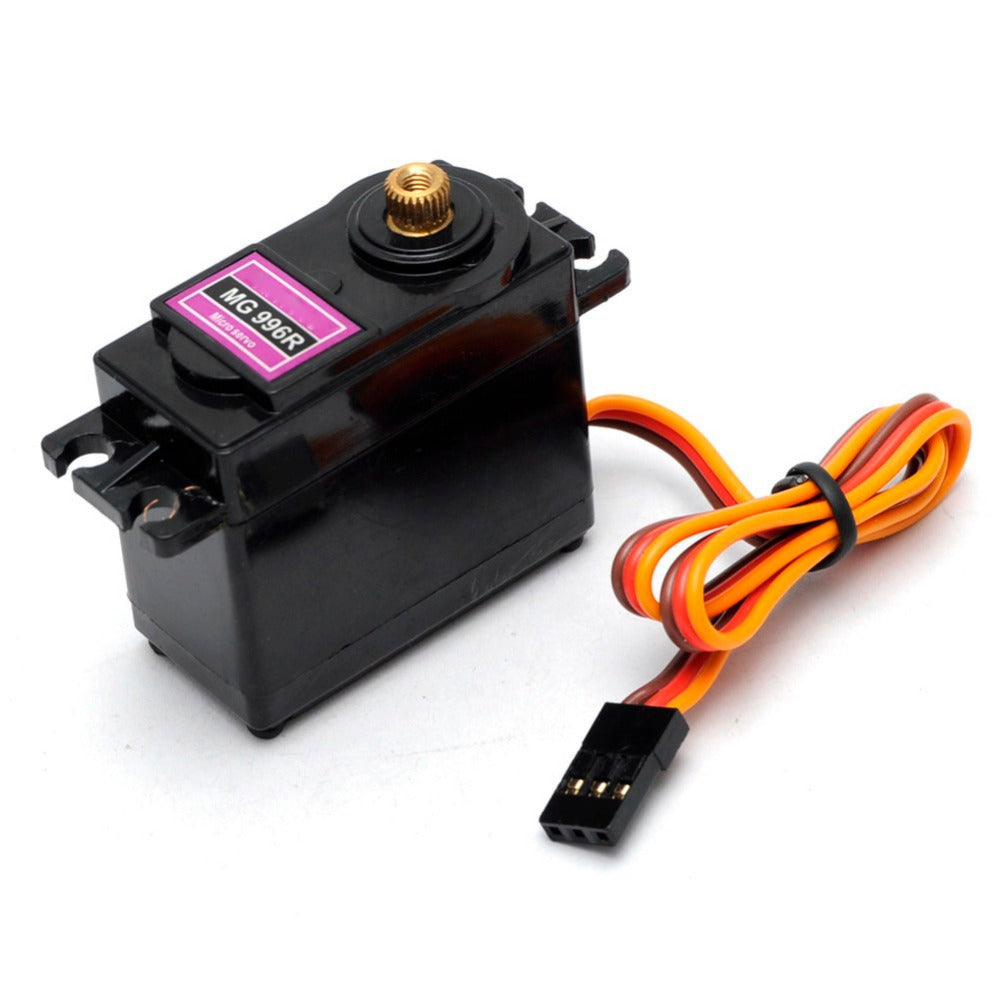

Servo motor MG996

The MG996R is a metal gear servo motor with a maximum stall torque of 11 kg/cm. Like other RC servos the motor rotates from 0 to 180 degree based on the duty cycle of the PWM wave supplied to its signal pin. It incorporates the new PCB and IC control system which makes it far more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. It is a great choice for 1/10 buggy and airplane helicopter, RC-cars from 10 to 6-th scale truggy and monster and many RC model.

Technical specification

• Operating Voltage is +5V typically
• Current: 2.5A (6V)
• Stall Torque: 9.4 kg/cm (at 4.8V)
• Maximum Stall Torque: 11 kg/cm (6V)
• Operating speed is 0.17 s/60°
• Gear Type: Metal
• Rotation : 0°-180°
• Weight of motor : 55gm
• Package includes gear horns and screws
