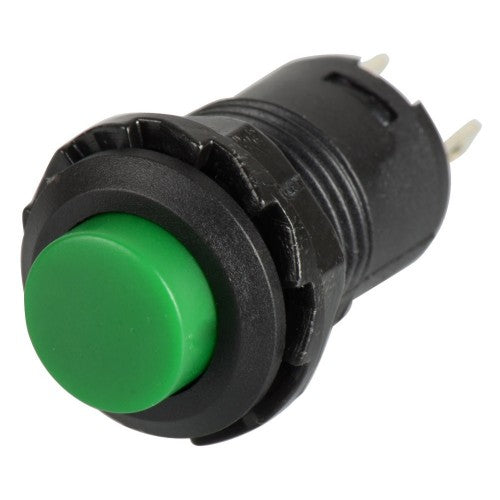

Reset button

This is a momentary or non-latching switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (i.e. a spring) returns the switch to its default position immediately afterwards, restoring the initial circuit condition. The reset button is a button that can reset a device

Technical Specification

• Maximum current/voltage rating with resistive load : 400 mA 32 V ac, 100 mA 50 V dc and 125 mA 125V ac
• Maximum initial contact resistance : 50 mΩ
• Minimum insulation resistance : 1 GΩ at 500 V dc
• Dielectric strength : 1,000 V ac rms
• Electrical life at full load : 500,000 cycles
• Colours: red and green
