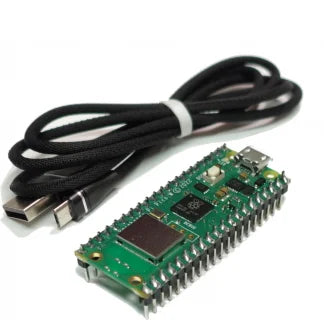

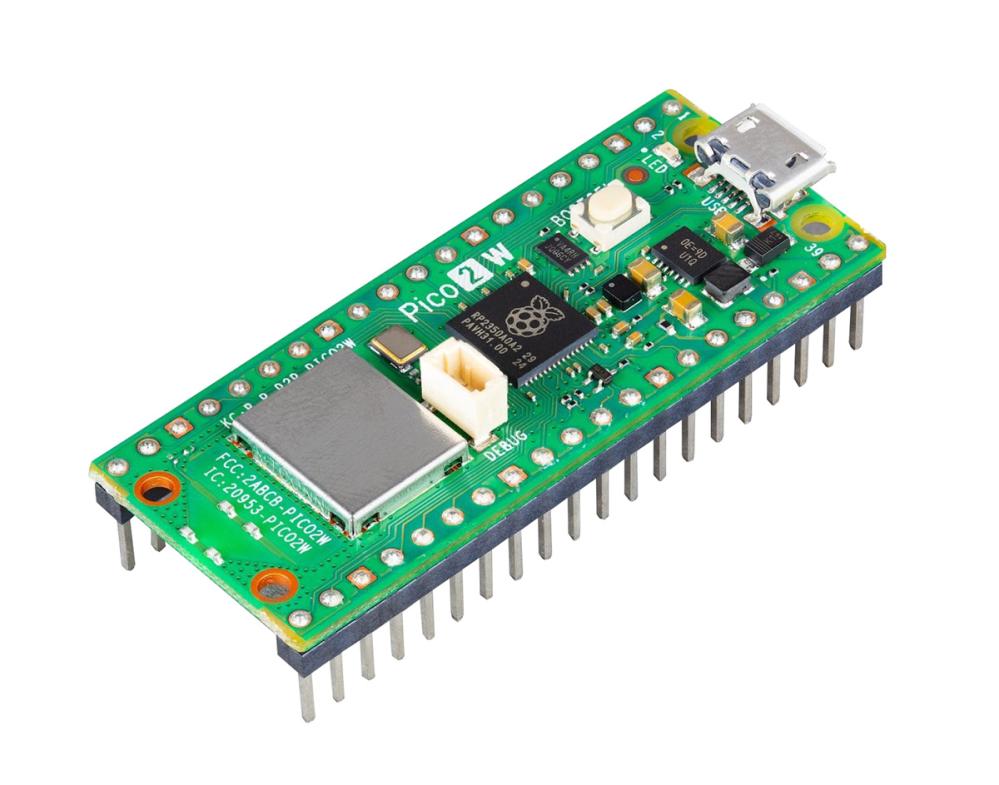

Raspberry Pi Pico 2W RP2040

Dual Arm Cortex-M33 or dual Hazard3 RISC-V processors @ 150MHz

520 KB on-chip SRAM

2.4GHz 802.11n wireless LAN and Bluetooth 5.2 (Raspberry Pi Pico 2 W only)

Software- and hardware-compatible with Raspberry Pi Pico 1

Drag-and-drop programming using mass storage over USB

Castellated module allows soldering direct to carrier boards

Robust and fully documented security features:

• ARM TrustZone for Cortex-M
• Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP
• Protected OTP storage for optional boot decryption key
• Global bus filtering based on Arm or RISC-V security/privilege levels
• Peripherals, GPIOs, and DMA channels individually assignable to security domains
• Hardware mitigations for fault injection attacks
• Hardware SHA-256 accelerator

2 × UART

2 × SPI controllers

2 × I2C controllers

16 × PWM channels

3 x ADC channels

1 × USB 1.1 controller and PHY, with host and device support

12 × PIO state machines

Open source C/C++ SDK, MicroPython support

Operating temperature -20°C to +85°C

Supported input voltage 1.8–5.5V DC
