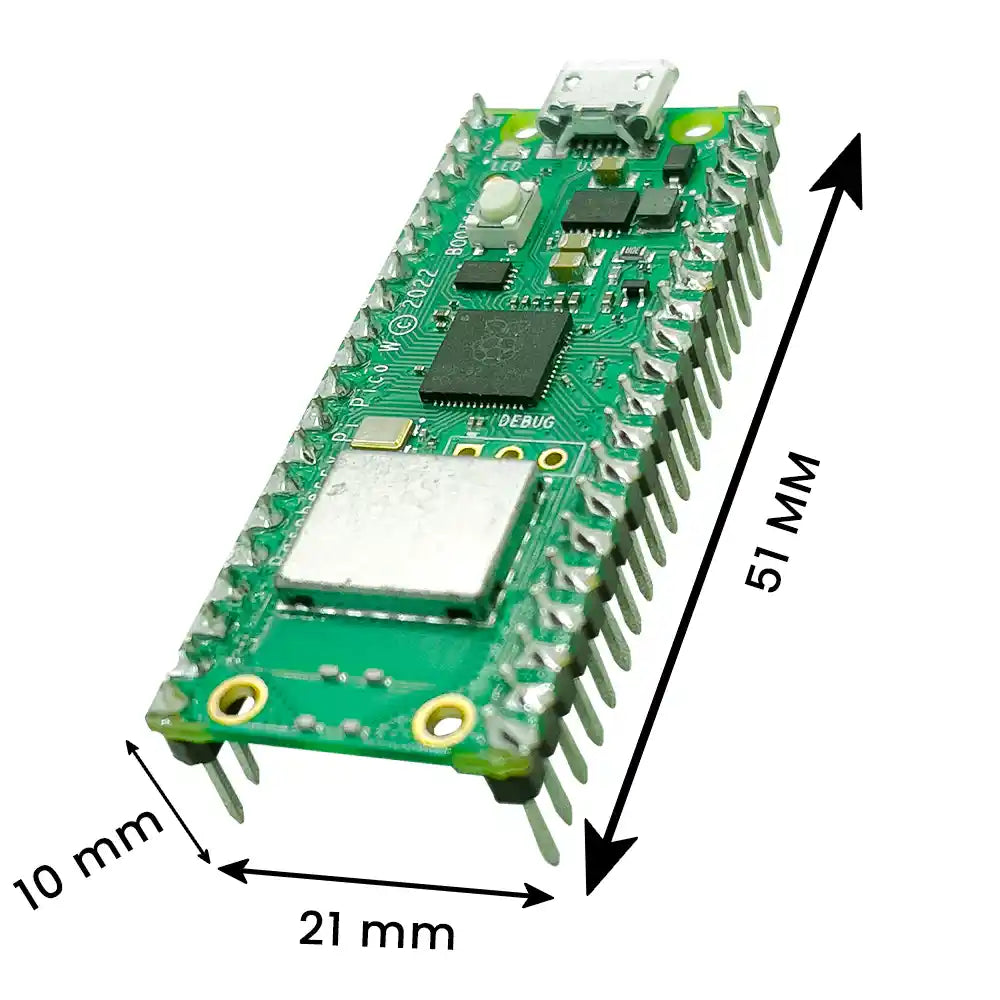

Raspberry pi Pico W RP2040

Board Specifications:

Raspberry Pi Pico W has been designed to be a low cost yet flexible development platform for RP2040, with a 2.4GHz wireless interface and the following key features:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz 264kB of SRAM, and 2MB of on-board Flash memory On-board single-band 2.4GHz wireless interfaces (802.11n) Castellated module allows soldering direct to carrier boards USB 1.1

Host and Device support Low-power sleep and dormant modes Drag & drop programming using mass storage over USB 26 multi-function GPIO pins 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels,

Accurate clock and timer on-chip Temperature sensor Accelerated floating point libraries on-chip 8×Programmable IO (PIO) state machines for custom peripheral support Raspberry Pi Pico W and Pico WH incorporate an Infineon CYW43439 wireless chip.

CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch.
