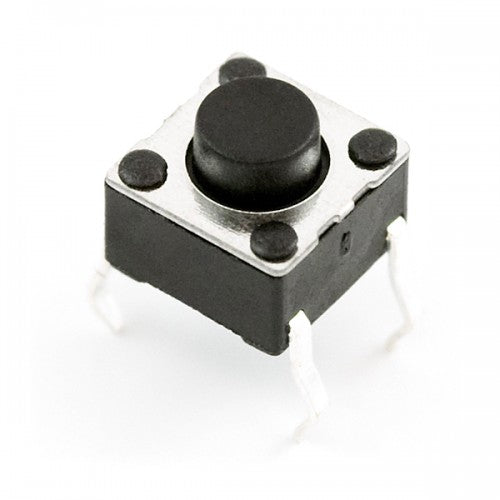

6x6x5mm Tact Switch

The 6mm x 6mm tactile switch come with a right angle option, many actuator lengths and multiple operating forces. The tact switch features reliable dome contact technology, and a strong tactile feedback, and can also come with an earth ground terminal. Applications for this through hole tact switch include telecommunications, consumer electronics, audio/visual, medical device, testing/instrumentation, computer peripherals and more.

Technical Specification

• Temperature:-30~+70Centigrade
• Withstand Voltage:AC250V
• Rated Load:DC12V 50mA.
• Contact Resistance:≤0.03Ω
• Insulation Resistance:≥100MΩ
• Feature momentary contact, 4 pins
