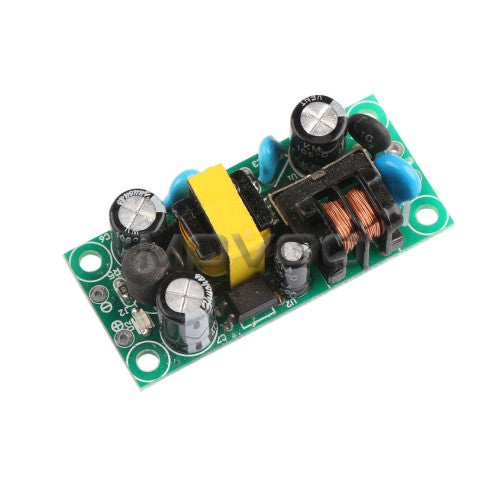

Power supply(12v500mA)

The power supply is isolated industrial power supply module with temperature protection, over-current protection and short-circuit protection functions, high-low voltage isolation, AC 85~265V wide voltage input, 431 high-precision voltage-stabilizing DC 12V output

Technical Specification

• Input voltage: AC 85V - 265V 50/60HZ
• Output voltage: DC12V (± 0.2V)
• Output current: 500mA
• Output power: 3W
• Operating temperature: -20 ° C to +60 ° C
• Relative humidity :40-90% RH without cooling
• Input surge current: 20A
• Output voltage range: 11.80~12.1V
