Microscale

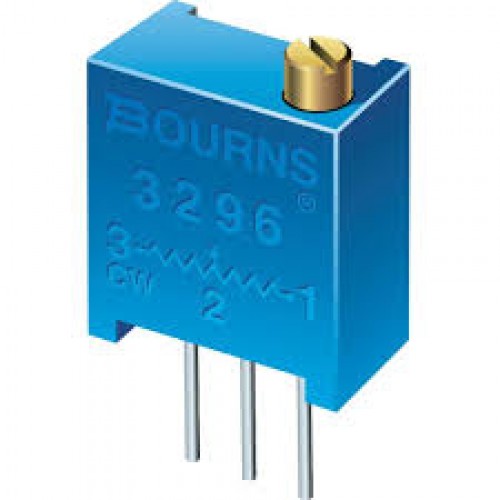

Potentiometer 50K 503

Potentiometer 50K 503

Regular price ₦210.00 NGN
Regular price Sale price ₦210.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

50k 503 variable resistor

This trimmer potentiometer have a clutch mechanism that prevents excessive wiper rotation. They are also compatible with ultrasonic cleaning. This 50K trimmer (variable resistor) can be used to tweak settings on a circuit that will not need to be changed often. These trimmers typically get adjusted only to optimize some needed setting. Use it to resist current, or as a voltage divider.

Technical Specification

  • Standard Resistance: 50K ohm
  • Power rating: 0.5W
  • Max Working Voltage: 300Vdc
  • Max Wiper Current: 100mA max.
  • Residual Resistance: 2 ohm max
  • Contact Resistance Variation: 3% or 3 ohm max (whichever is greater)
  • Dielectric Strength: 600Vac
  • Insulation Resistance: 1000M ohm min (500Vdc)
  • Torque: 19.6mNm (200gh-cm) max
  • Stop Torque: 49mNm (500gf-cm) min
