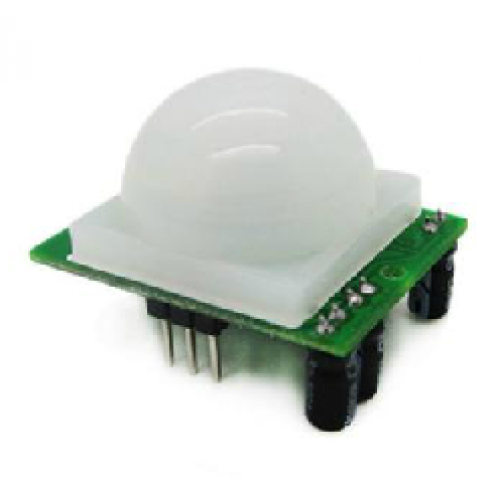

PIR Motion Sensor

PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use and don't wear out. For that reason they are commonly found in appliances and gadgets used in homes or businesses. They are often referred to as PIR, "Passive Infrared", "Pyroelectric", or "IR motion" sensors. For many basic projects or products that need to detect when a person has left or entered the area, or has approached, PIR sensors are great. They are low power and low cost, pretty rugged, have a wide lens range, and are easy to interface with. Note that PIRs won't tell you how many people are around or how close they are to the sensor.

Technical Specification

• Complete with PIR, Motion Detection.
• Dual Element Sensor with Low Noise and High Sensitivity.
• Supply Voltage 3.3 – 5V.
• Delay Time Adjustable.
• Standard TTL Output
• Sensitivity range: up to 20 feet (6 meters) 110 degrees x 70 degrees detection range
• Power Consumption: 65mA
