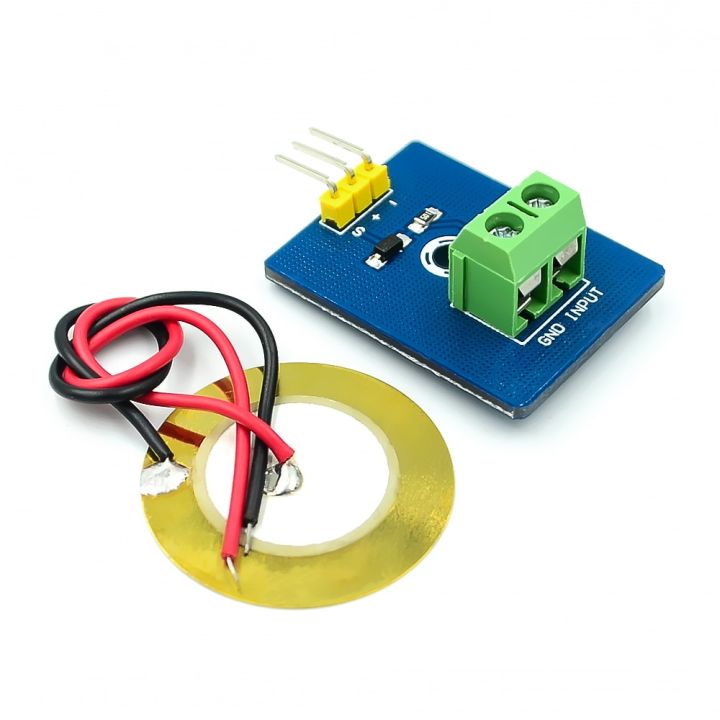

Analog Piezoelectric Vibration Module

Analog Piezoelectric Vibration Module

Regular price ₦750.00 NGN
Regular price Sale price ₦750.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.


Technical Parameter:

Working Voltage: 3.3V or 5V

Working Current: <1mA

Operating Temperature Range:-10℃~+70℃

Interface Type: Analog Signal Output

Item Size: 30mm x 23mm


S; signal output,

+; power supply (VCC),

-; ground (GND)

Input: Positive electrode of the piezoelectric ceramic

Gnd: Negative electrode of the piezoelectric ceramic


1. S-port is connected with the controller's analog input pin.

2. 5V and GND are respectively connected the power supply of + 5V and GND.

3. Input and Gnd are already connected with the piezoelectric ceramics' positive and negative.


Features & details

1. Based on piezoelectric ceramic chip analog vibration makes use of the anti-transformation process of piezoelectric ceramic making the electric signals vibrate.

2. When the piezoelectric ceramic shocking will generate an electrical signal, Controller analog port can be perceived slight vibration signals, Also can be realized with vibration interactions related works, such as electronic drums.
