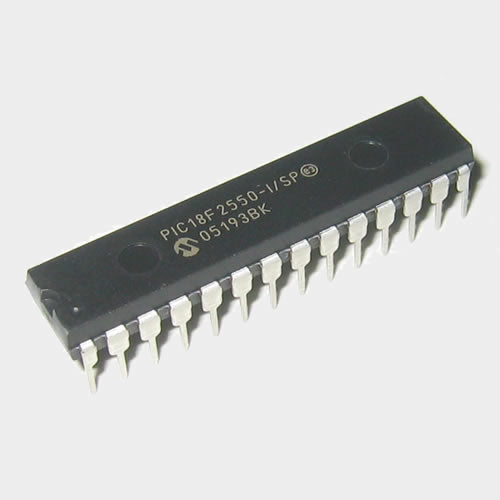

PIC18F2550

PIC18F2550 is ideal for low power (nanoWatt) and connectivity applications that benefit from the availability of three serial ports: FS-USB (12 Mbit/s), I²C™ and SPI™ (up to 10Mbit/s) and an asynchronous (LIN capable) serial port (EUSART). Large amounts of RAM memory for buffering and Enhanced FLASH program memory make it ideal for embedded control and monitoring applications that require periodic connection with a (legacy free) Personal Computer via USB for data upload/download and/or firmware updates. While operating up to 48 MHz, the PIC18F2550 is also mostly software and hardware compatible with the PIC16C745 Low-Speed USB OTP devices. THE PICSTART® Plus does NOT currently support this device but may support it in the future.

Technical Specification

• Program Memory Type: Flash
• Program Memory Size (KB): 32
• CPU Speed (MIPS/DMIPS):12
• SRAM Bytes: 2,048
• Data EEPROM/HEF (bytes): 256
• Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
• Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP
• Timers: 1 x 8-bit, 3 x 16-bit
• ADC Input: 10 ch, 10-bit
• Number of Comparators: 2
• Number of USB Modules: 1, FS Device
• Temperature Range (C): -40 to 85
• Operating Voltage Range (V): 2 to 5.5
• Pin Count: 28
