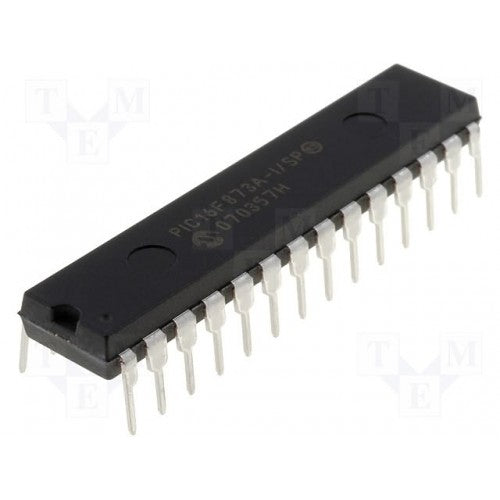

PIC16F873A
PIC16F873A
PIC16F873A
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F873A features 128 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 5 channels of 10-bit Analog-to-Digital (A/D) converter, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
Technical Specification
- Program Memory Type: Flash
- Program Memory Size (KB): 7
- CPU Speed (MIPS/DMIPS): 5
- SRAM Bytes: 192
- Data EEPROM/HEF (bytes): 128
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
- Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 5 ch, 10-bit
- Number of Comparators: 2
- Temperature Range (C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 28
