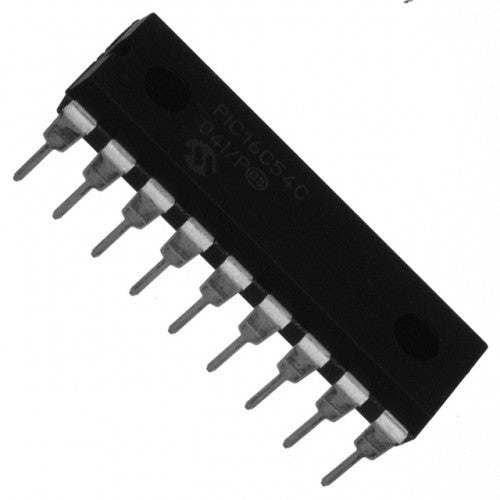

PIC16C54C

PIC16C54C is a low-cost, high performance, 8-bit, fully static,EPROM/ ROM-based CMOS microcontroller. It employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (200 ns) except for program branches which take two cycles. The PIC16C54C delivers performance an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly. The PIC16C54C products are equipped with special features that reduce system cost and power requirements

Technical Specification

• Program Memory Type: OTP
• Program Memory Size (KB): 0.75
• CPU Speed (MIPS/DMIPS): 10
• SRAM Bytes: 25
• Timers: 1 x 8-bit
• Temperature Range (C): -40 to 85
• Operating Voltage Range (V): 2.5 to 5.5
• Pin Count: 18
