PIC Development Kit

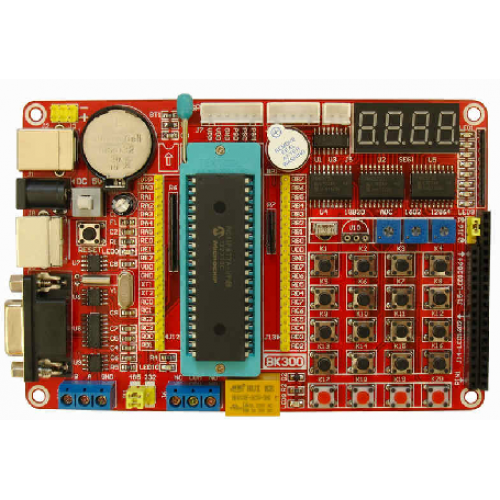

Development board equipped with a PIC16F877A chip

◆ ZIF40 socket tofacilitate removing the PIC microcontroller

◆ 8 LED LEDdiode

◆ 4-digit 7 segment display

◆ 1 * 4 independentkeys

◆ 4 * 4 matrix key

◆ DS1302 clock chip (electronic clockexperiments)

◆ DS18B20 temperature sensor (temperature detection anddisplay)

◆ AT24C02 I2C external memory

◆ internal EEPROMwrite

◆ Buzzer (MCU voice, music)

◆ MAX232 chip RS232communication

◆ ADC potentiometer input conversion (AD conversionexperiments)

◆ 1602 LCD interface (character display)

◆ 12864 LCD interface (character display, image display,man-machine interface)

◆ USB-powered interface

◆ DC machineinterface (PWM to achieve speed)

◆ stepper motor interface

◆infrared receiver

◆ 1 relay

◆ PS2 keyboard interface

◆external reset circuit

◆ ICSP debuggin / programming interface(sold separately emulator or programmer)

◆ All IO port pin leads andclearly marked (user-expandable)
