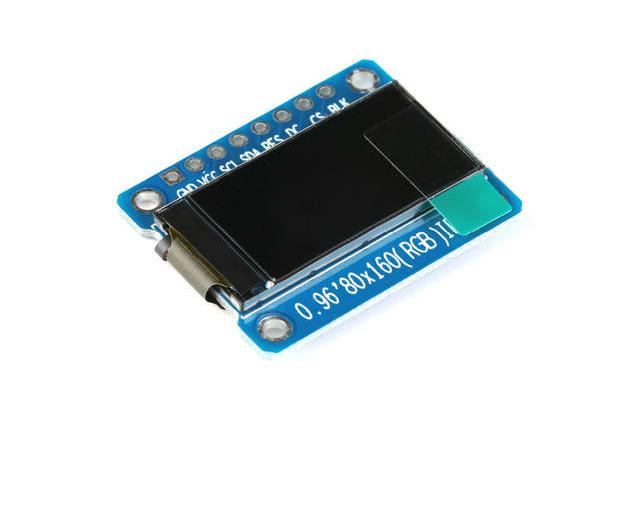

OLED display RGB 0.96 inch

OLED display RGB 0.96 inch

Regular price ₦6,600.00 NGN
Regular price Sale price ₦6,600.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Product Description:

Size: 0.96 inch

Material: New IPS color screen, brighter than ordinary TFT LCD

Resolution: 80*160 display direction can be adjusted, horizontal screen vertical screen can

Control chip: ST7735

Display area: 10.8*21.696(mm)

Physical size: 24*30 (mm)

Interface Type: SPI Interface

Number of pins: 7Pin

Display color: 65K full color

Working temperature: -20~70 degrees Celsius

Operating voltage: 3.3V

Weight: 5g

Pin Connect:

GND (power ground)

VCC (power is 3.3~5V)

SCL (SPI clock line)

SDA (SPI data line)

RES (OLED reset, OLED needs to be reset after power on)

DC (SPI data/command selection pin)

BLK (LCD backlight control, default can be suspended, low level off the backlight)
