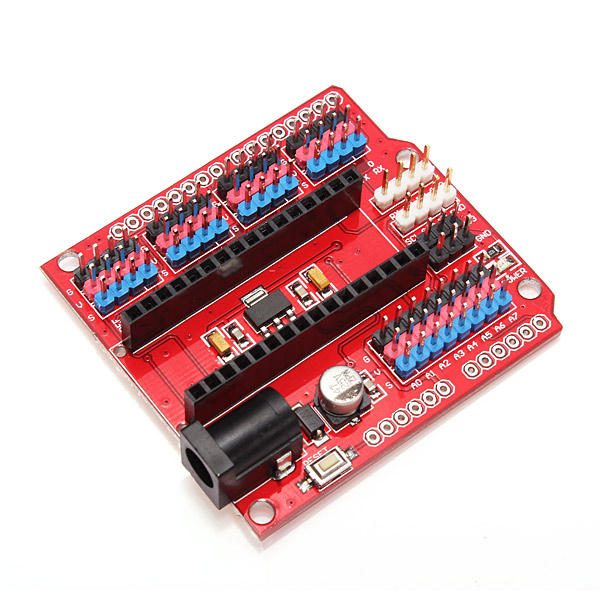

Multi-function I/O Expansion Shield For Arduino Nano

Multi-function I/O Expansion Shield For Arduino Nano

Regular price ₦2,700.00 NGN
Regular price Sale price ₦2,700.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface. Lead out the I2C interface of mainboard for convenient connection.

Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.

Features

Expansion shield for Arduino Nano Pin out for 14 digital input/output pins Pin out for 6 PWM outputs Pin out for 8 analog inputs Pin out for I2C Interface Power jack Reset button LED for power indicator AMS1117 3.3V Output Voltage Also compatible with Arduino UNO after soldering pin headers to this shield
