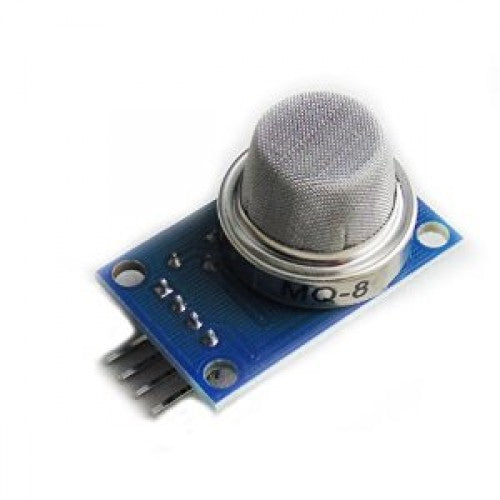

MQ-8 hydrogen sensor

MQ-8 hydrogen sensor

Regular price ₦0.00 NGN
Regular price Sale price ₦0.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

MQ-8 Hydrogen Sensor

This is a simple-to-use hydrogen gas sensor, suitable for sensing hydrogen concentrations in the air. The MQ-8 can detect hydrogen gas concentrations anywhere from 100-10000ppm. This sensor has a high sensitivity and fast response time. The sensor’s output is an analog resistance. The drive circuit is very simple; all you need to do is power the heater coil with 5V, add a load resistance, and connect the output to an ADC. The sensitive material used for this sensor is SnO2, whose conductivity is lower in clean air. It’s conductivity increases as the concentration of sensing gases increases. MQ8 Hydrogen gas sensor can be easily interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc using an Analog to Digital Converter (ADC).

Technical Specification

  • Load Resistance : 10KΩ
  • Heater Resistance : 31Ω ±5% at Room Temperature
  • Heating Consumption : < 800mW
  • Operating Temperature : -10°C ~ 50°C
  • Detection Range : 100 ~ 10,000 ppm of Hydrogen
  • Operating Voltage: DC 5V
  • Analog Output (AO): 0~5V analog output voltage
  • Digital Outout (DO): 0V or 5V output
  • Configuration: Through Potentiometer (adjusts the output level transition)
  • Preheat Duration: 20s
  • Weight: 5g
  • Dimensions: 23 x 19 x 19 mm
