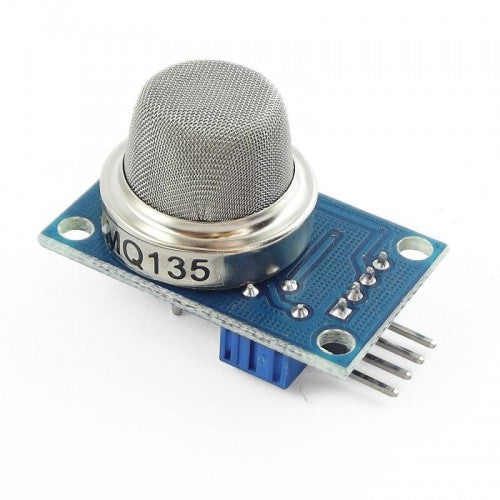

MQ-135 Air Quality Sensor

The MQ-135 Gas sensors are used in air quality control equipments and are suitable for detecting or measuring of NH3, NOx, Alcohol, Benzene, Smoke, CO2. The MQ-135 sensor module comes with a Digital Pin which makes this sensor to operate even without a microcontroller and that comes in handy when you are only trying to detect one particular gas. If you need to measure the gases in PPM the analog pin need to be used. The analog pin is TTL driven and works on 5V and so can be used with most common microcontrollers. If you are looking for a sensor to detect or measure common air quality gases such as CO2, Smoke, NH3, NOx, Alcohol, Benzene then this sensor might be the right choice for you.

• Detection Range: 10 - 300 ppm NH3, 10 - 1000 ppm Benzene, 10 - 300 ppm Alcohol.
• Fast response and High sensitivity
• Stable and long life
• Operating Voltage is +5V
• Detect/Measure NH3, NOx, alcohol, Benzene, smoke, CO2, etc.
• Analog output voltage: 0V to 5V
• Digital output voltage: 0V or 5V (TTL Logic)
• Preheat duration 20 seconds
• Can be used as a Digital or analog sensor
• The Sensitivity of Digital pin can be varied using the potentiometer
