MAX30105 Particle and Pulse Oximeter Sensor

MAX30105 is an integrated particle detection module. It has a built-in LED, photodetector, optical components, and a high SNR circuit with ambient light suppression, as well as reliable motion artifact suppression. This simplifies the smoke detection process for fire alarm lamps. Thanks to its extremely small size, it can also be used for smoke detection sensors in mobile and wearable devices.

Product Specifications:

• Module supply voltage: DC 5V
• Operating environment temperature: -40°C to 85°C
• Communication interface: I²C
• Ultra-low power consumption: Programmable sampling rate and LED current
• Power saving: Ultra-low standby current (typical value: 0.7 μA)

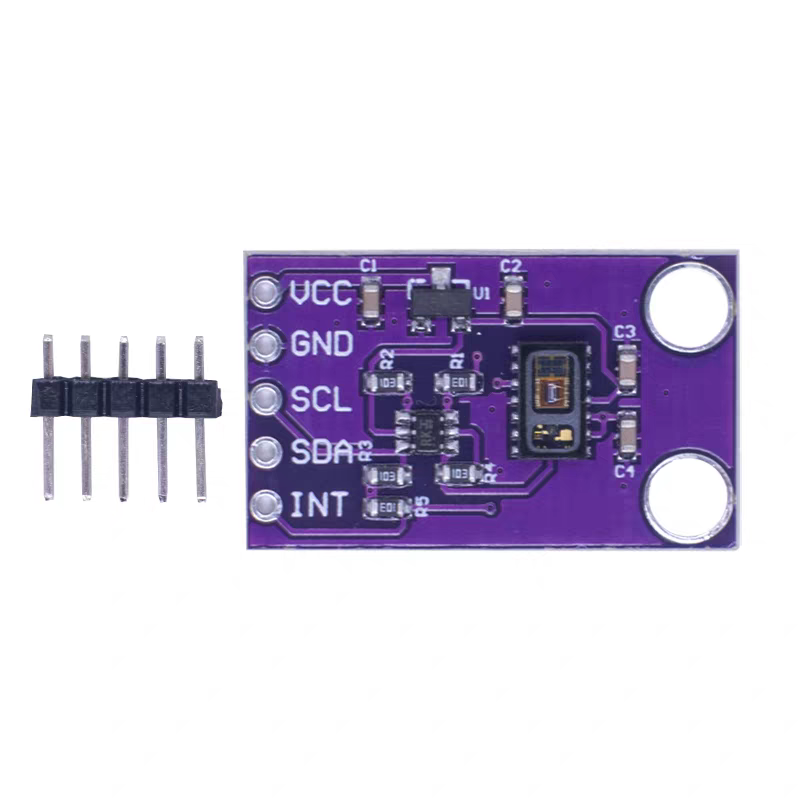

Pin Definitions:

• VCC: Power supply
• GND: Ground
• SCL: I²C serial clock line
• SDA: I²C serial data line
• INT: Active-low interrupt, with pull-up resistor.
