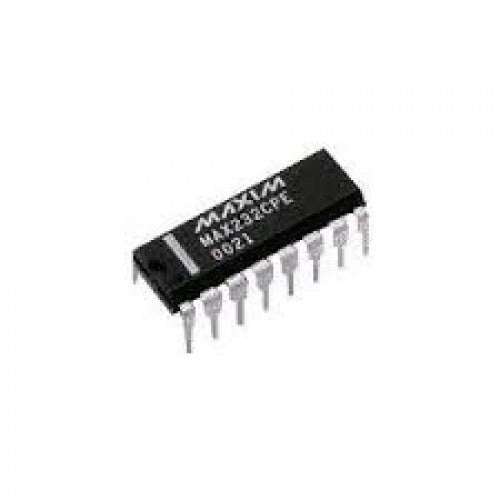

MAX232

MAX232 is used for TTL/CMOS to RS232 conversion. Meaning most of our Microcontrollers (PIC/ARM/Atmel) operates on TTL/CMOS logic that is it communicates through either 0V or +5V, but our computers work with the help of RS232 which operates at logic level -24V or +24V. So, if we have to interface these microcontrollers with Computer we need to convert the TTL/CMOS logic to RS232 logic. Hence if you are looking for an IC to perform this conversion and interface a Microcontroller with your computer then MAX232 IC is the right one for you

Technical Specification

• TTL/CMOS to RS232 Converter IC
• Can support two conversion at the same time (Dual drivers and Receivers)
• Easy to set-up and initialize
• Operating speed: 120kbit/s
• ±30-V Input Levels
• Operating current: 8mA
