Microscale

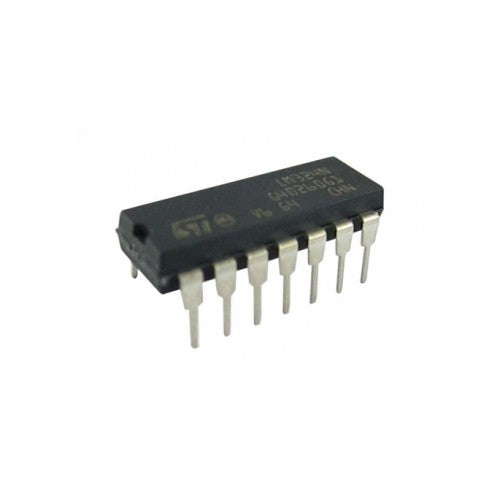

LM324

LM324

Regular price ₦150.00 NGN
Regular price Sale price ₦150.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

LM324 Operational Amplifier

LM324 is a Quad op-amp IC integrated with four op-amps powered by a common power supply. The differential input voltage range can be equal to that of power supply voltage. The default input offset voltage is very low which is of magnitude 2mV. The operating temperature ranges from 0˚C to 70˚C at ambient whereas the maximum junction temperature can be upto 150˚C. Generally, op-amps can perform mathematical operations.

Technical Specification

  • Integrated with four Op-Amps in a single package
  • Wide power supply Range
  • Singe supply – 3V to 32V
  • Dual supply – ±1.5V to ±16V
  • Low Supply current – 700uA
  • Single supply for four op-amp operation enables reliable operation
  • Operating ambient temperature – 0˚C to 70˚C
  • Soldering pin temperature – 260 ˚C (for 10 seconds – prescribed)
