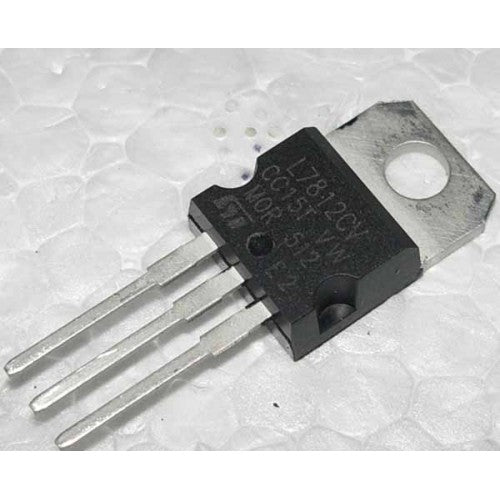

LM7812 Voltage Regulator

The LM7812 Voltage Regulator is a type of linear voltage regulator used to provide a stable output voltage from an unregulated input voltage. It is designed to provide a constant 12V output voltage, and is commonly used in applications such as power supplies, battery chargers, and automotive electronics.

Technical Specifications

• Voltage Regulator Type: LM7812
• Input Voltage: 10V to 35V
• Output Voltage: 12V
• Output Current: 1.5A
• Dropout Voltage: 2V
• Operating Temperature: -40°C to +125°C
• Dimensions: 8.5mm x 8.5mm x 14.5mm
