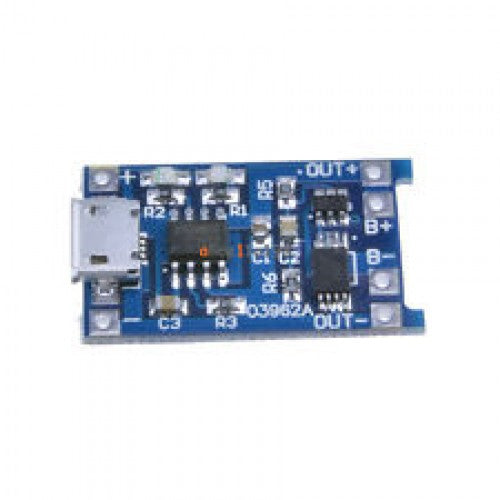

lipo charger module

This module can be used to charge single-cell lithium battery, lipo battery or multi-section parallelled lithium batteries. It can be powered by USB ports. With LED indicators, the charging status can be easily read. Red for charging, Green for fully charged. The Input Voltage is 5V and the maximum output current is 1A. The input interface is Micro USB

Technical Specification

• Input voltage: 5V
• Charging cut-off voltage: 4.2V ± 1%
• Maximum charge current: 1000mA
• Battery over-discharge protection voltage: 2.5V
• Battery overcurrent protection current: 3A
• Input interface: micro USB
• Size: 27mm x 17mm
