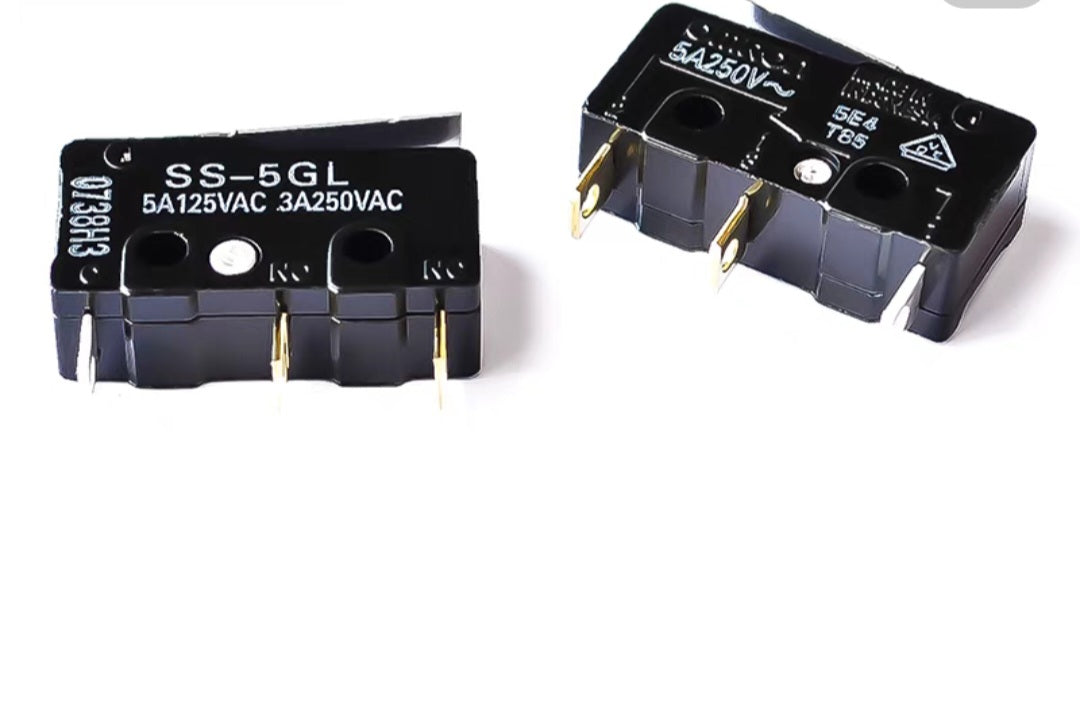

Limit Switch SS-5GL

Limit Switch SS-5GL

Regular price ₦1,100.00 NGN
Regular price Sale price ₦1,100.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Omron Model: SS-5GL Micro Switch 5A125VAC 3A250VAC A5

Features & Benefits:

  • Omron SPDT Hinge Lever 5A 250VAC
  • Switch Configuration N.O./N.C.
  • Actuator Style Hinge Lever
  • Pole Throw Configuration SPDT
  • Maximum Current Rating (A) 5 @125VAC
  • Electrical Life (Cycles) 200000
  • Mechanical Life (Cycles)30000000
  • Maximum Movement Differential (mm)0.8
  • Mounting Screw Mount
  • Termination Style Solder
  • Body Orientation Straight Minimum
  •  L x W x H = 18 x 6.4 x10.6 mm
  • Operating Temperature -25°C ~ 85°C


 This SS-5GL snap-action switch from Omron can be actuated with very little physical force. It has a SPDT configuration. This device has a maximum current rating of 5 A @ 125VAC 14VDC. This snap action switch has an operating temperature range of -25 °C to 85 °C. The SS-5GL snap action switch has a solder termination style. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 14 VDC. This product is 19.8 mm long, 20 mm tall and 6.4 mm deep.


Actuator Type : Flat Lever
Body Style : Subminiature
Brand/Series : SS Series
Contact Form : SPDT
Current Rating : 5Amps
Dielectric Strength : 1500 VAC
Mounting Hole Size : 2.4 mm
Number of Poles : 1 Pole
Operating Force : 50 g
Operation : Snap Action
Standards : UL Listed, CSA Certified
Temperature, Operating : -25 to +85 °C
Termination : Solder Lugs
Type : Basic
Voltage Rating : 125VAC VAC
