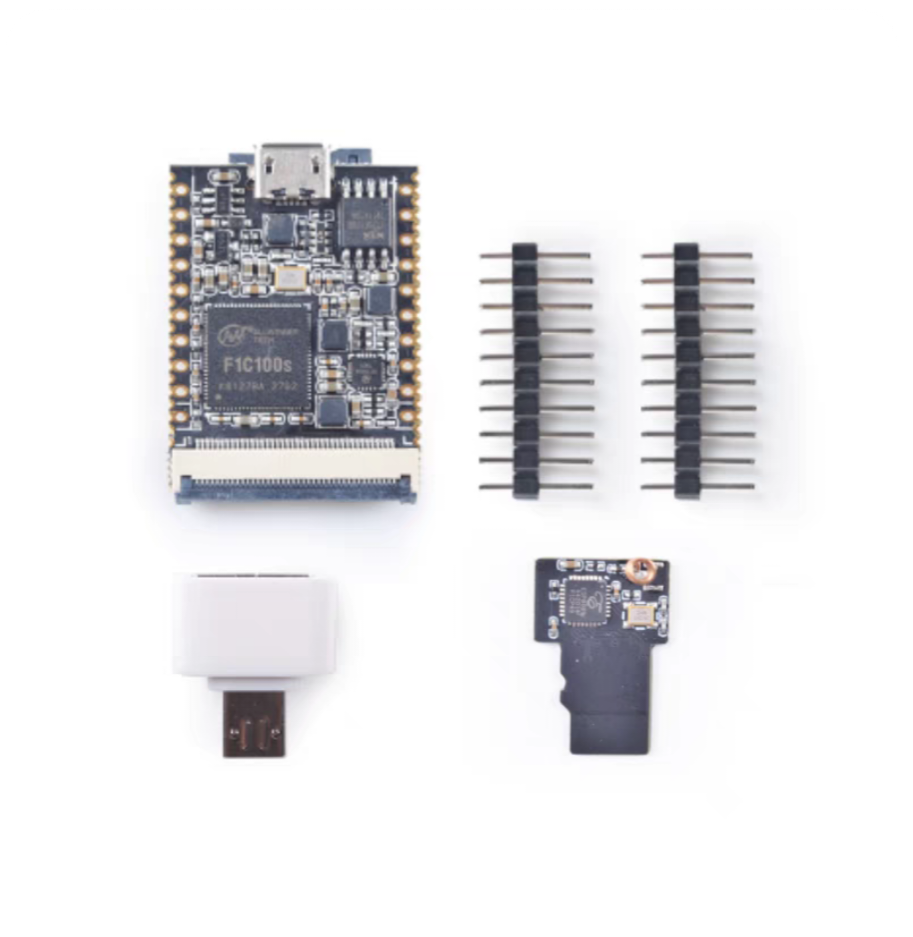

Lichee Nano mini development board

Description:

Introduction

Lichee Nano is a high-performance and mini development board using F1C100s (ARM 9EJS Architecture) of allwinner technology.The design of the development board is small and exquisite. It leads to all the resources of the chip, such as USB, flash,TF card and 40P LCD interface.This provides great convenience for developers, and also makes Lichee Nano very suitable for beginners to learn Linux or commercialproduct development.

Lichee Nano Basic Parameters F1C100s Parameters

1、Kernel: ARM 926EJS @ 900MHz

2、DDR: Build-in 32MB DDR1

3、SDIO*1 (Support our WiFi+BT module)

4、Headphone out*1 + Line in *1 + Mic in *1

5、SPI*2

6、TWI*3

7、UART*3

8、OTG USB *1

9、Video processing:

-H.2641280x720@30fps Decoding

-MPEG1/2/41280x720@30fps Decoding

-MJPEG 1280x720@30fps Coding

-JPEG encode size up to 8192x8192

DevelopmentBoard Parameters

1、Size:25.4mm*33mm

2、Power supply interface: Micro USB,2.54mm pin,1.27mm stamp hole (3.3~5V)

3、Lead lO: standard 2.54mm pin interface, lead out allresources of the chip

4、Support multiple systems: Bare(Xboot)、Main line Linux、RT-Thread RTOS、Melis os

Features & details

Package: Mother Board + 2.54 Pin Head + OTG

Supports Multiple operating Systems：Main line Linux,RT-Thread, Bare(Xboot)

Multiple Boot Modes：FlashTF card

Headphone out*1 + Line in *1 + Mic in *1

Power supply interface: Micro USB,2.54mm pin,1.27mm stamp hole (3.3~5V)

Lead lO: standard 2.54mm pin interface, lead out allresources of the chip
