3mm LED Matrix display

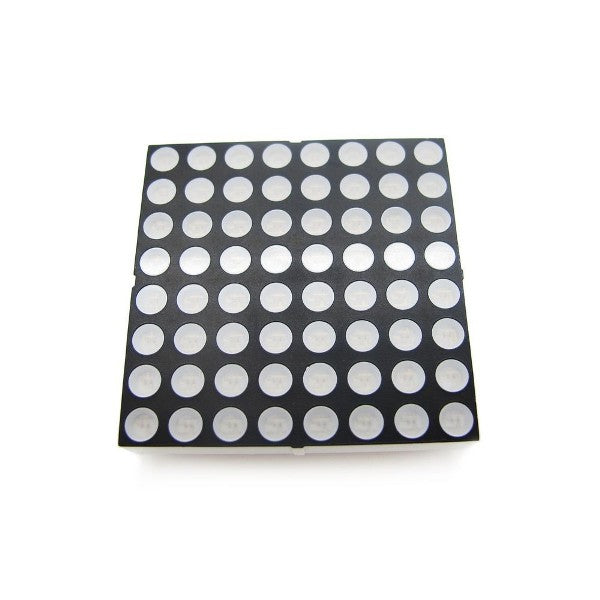

3mm  8*8 LED Matrix Module Dot Matrix Red Display Common anode.

LED matrix module is a very useful and low-cost way to add display in your electronic circuits. It has 16 pins to achieve a different combination to ON/OFF the LED's. It fits properly into any standard solderless breadboard.. It is a Great display for electrical and test equipment. The diameter of the Led is about 3 mm with common Anode configuration which emits Red colour. The Exact dimensions of this module are shown in the Schematic image.

These Displays are always in high demand in the DIY community as well as in Industrial Projects due to their multipurpose uses and cheap cost.

Applications:

1. Bar-Graph Displays
2. 7-Segment Displays
3. Industrial Controllers
4. Electronic Panel Meters
5. LED Matrix Displays
6. PIXEL gaming.
7. Character design.
8. Measuring instruments.
9. Hobby projects.
10. Display of symbols, simple graphics and texts.

Features:

1. Easy to Install on Breadboard
2. Bright LED lights
3. Compact Design.
4. LED Size: 3 mm
5. Configuration: Common anode.

Specifications :-

LED Size: 3 mm

Emitted Colour: Red

Face Color :Black

Wavelength: 625 ~ 630nm

Forward Voltage: 2.1V ~ 2.5V

Forward Current: 20 mA

Operating Temperature (C)   :  40 to 85

Length (mm): 32

Width (mm): 32

Heig ht (mm): 8
