Microscale

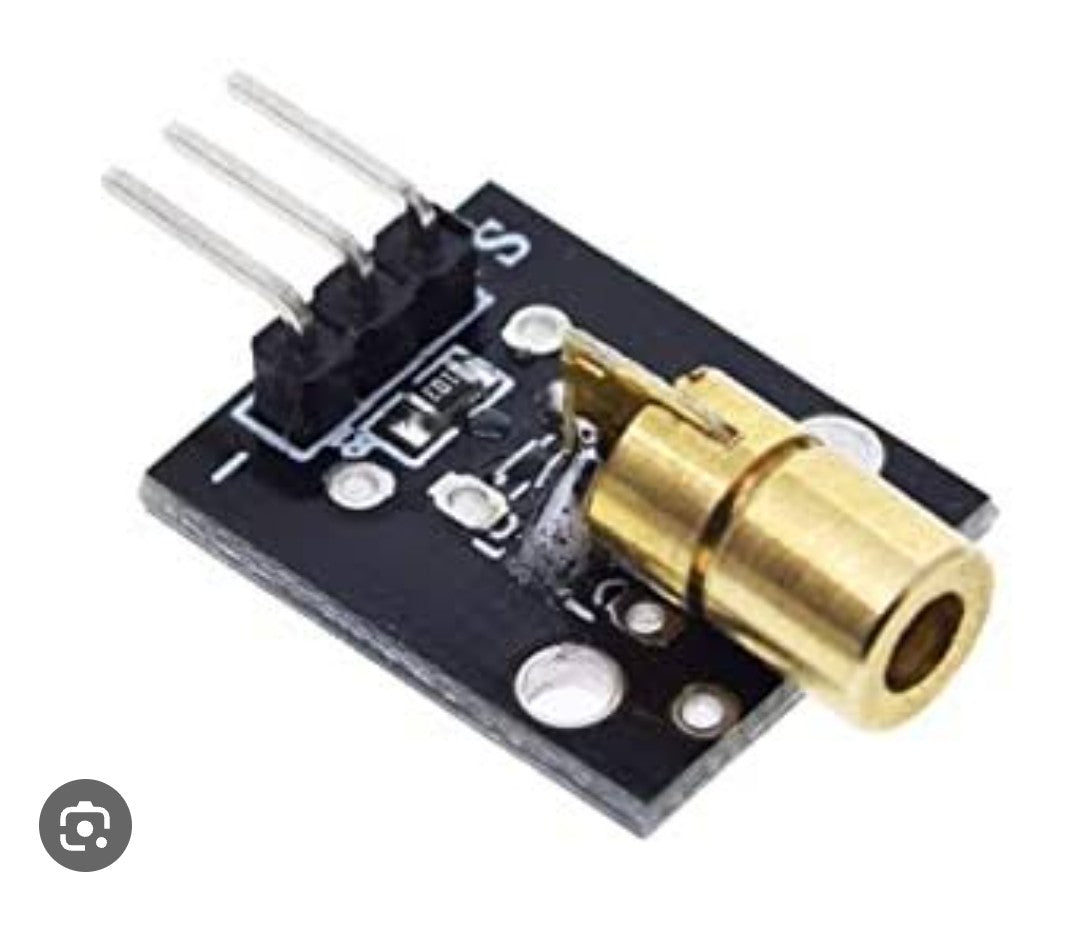

Laser diode module KY-008

Laser diode module KY-008

Regular price ₦900.00 NGN
Regular price Sale price ₦900.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Description:

Laser Diode Module is a breadboard friendly, low cost having wavelength of 650nm and operating voltage of 5V. The laser head is composed of a light-emitting tube, condenser lens and adjustable copper sleeve and it is assembled when delivered, the focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5v dc power supply. Pay attention to the laser cell to prevent from being burnt or battery explosion due to a short circuit when removing the battery.




Features of Laser Diode Module:-

Voltage: 3.0-5V
Output: red laser straightly(650nm)
Driver: APC circuit
Size: Φ 12.0 x35mm
Line length: about 135 mm
Transmit power: 58mW
Operating Current: 40mA
Operating temperature: -36 ~ 65◦C
Pot size: 15 meters spot for φ10 mm ~ φ15
Power lead length: 95mm
Outer diameter: 6mm


Applications of Laser Diode Module:-

-Laser test tools
-Concentricity positioning
-Medical equipment positioning
-Production of signal equipment
-Use for DIY or robots
-All kinds of level meters
-Laser projector
-Laser toys, etc.
