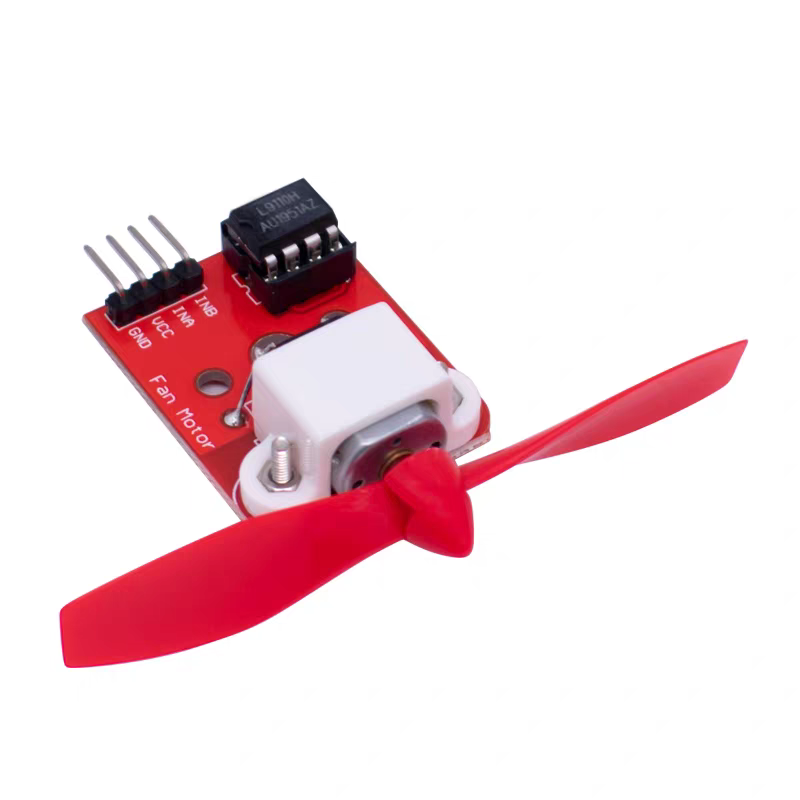

L9110 Motor Driver Fan Module

L9110 Motor Driver Fan Module

Product Introduction:

Product size: 50 × 26 × 15 mm (excluding propeller)

Propeller diameter: 75 mm

Operating voltage: 5V

Uses L9110 driver, can control forward and reverse rotation, comes with mounting holes, compatible with aircraft chassis control and high-quality propellers, high efficiency.

Can easily blow out a lighter flame at a distance of 20 cm. Suitable for making fire-extinguishing robots; essential for robot design and development.

Module Function Test

Hardware Requirements

Arduino controller × 1

USB data cable × 1

9110 fan module × 1

Module connection to Arduino board:

VCC → 5V

GND → GND

INA → Digital pin 9

INB → Digital pin 8
