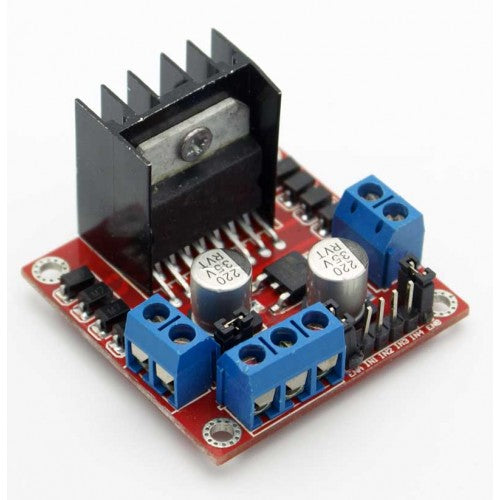

L298N motor driver

Description Driver chip: L298N dual H-bridge driver chip Terminal driver part of the supply area VMS: +5 V ~ +35 V

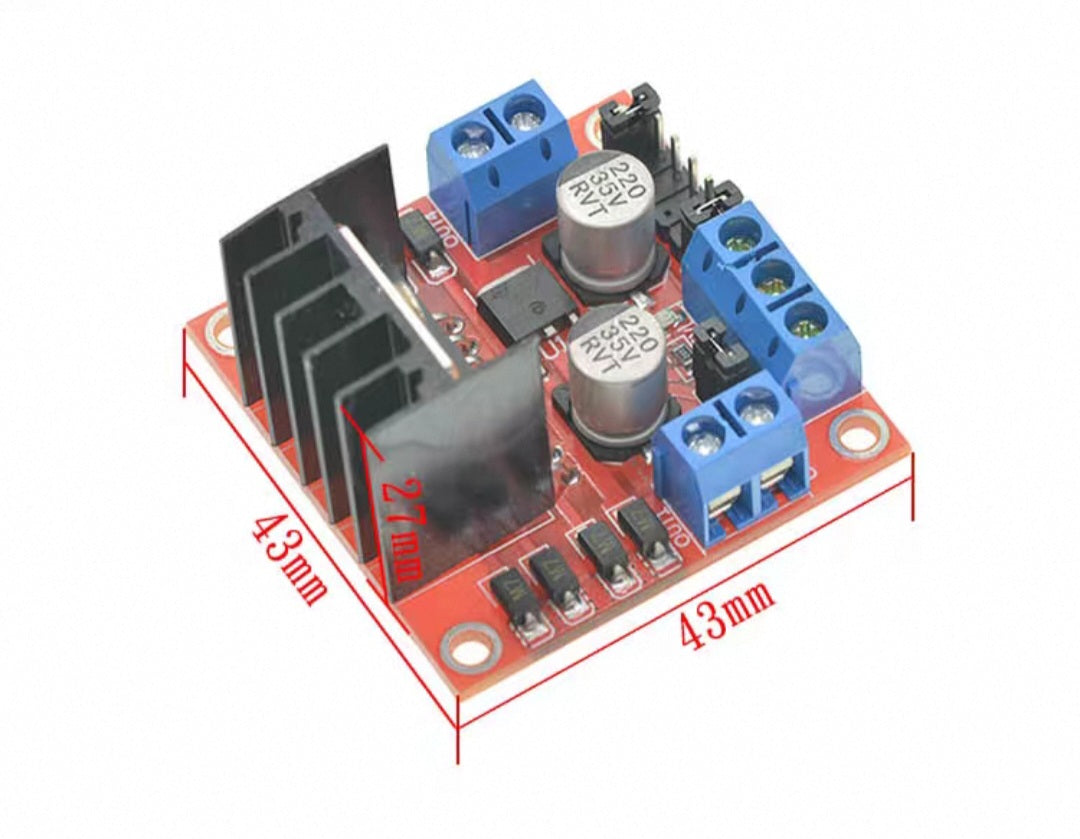

Drive part of the peak current Io: 2A / Bridge Logical part of the terminal power supply range Vss :4.5-5 .5 V Logical part of the operating current range: 0 ~ 36mA The control signal input voltage range: 4.5-5.5V low 0V high Maximum power consumption: 20W Storage temperature: -25 ~ +130 Driver Board Size: 55mm * 60mm * 30mm Driver board Weight: 33g Other features: control direction indicator, power indicator, current detection, logical part of the plate to take power interface
