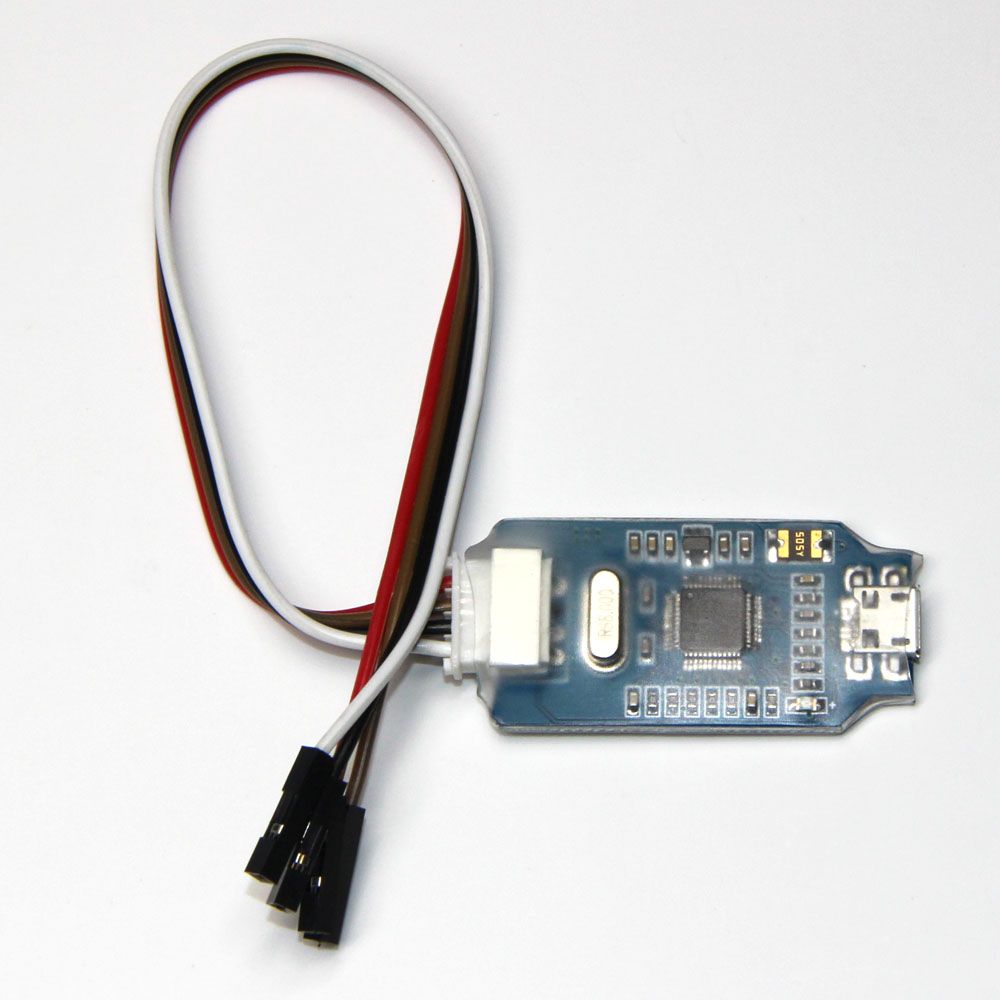

J-Link OB ARM debugger/programmer
J-Link OB ARM debugger/programmer
Regular price
₦14,700.00 NGN
Regular price
Sale price
₦14,700.00 NGN
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ARM Debugger is a debugger and programmer which supports the most popular ARM core MCUs including : ARM7/9/11, Cortex-M0/M3/M4, etc.
Specifications
Onboard self-recovery fuse, prevent any damage from short circuit
3.3V output, make it easy to debug/program the code
Universal Micro USB interface
Protected by heat-shrink tube
Unique ID, supports multi devices to work together at the same time.
Functionality and Performance:
Debugging
Supports full-speed running, single step, breakpoints and so on. Check IO status, variable, etc.
Quick response through the USB2.0 interface
Programming
Programs FLASH ROM, EEPROM, AFR, etc.
High speed SWD programming through the USB2.0 interface
