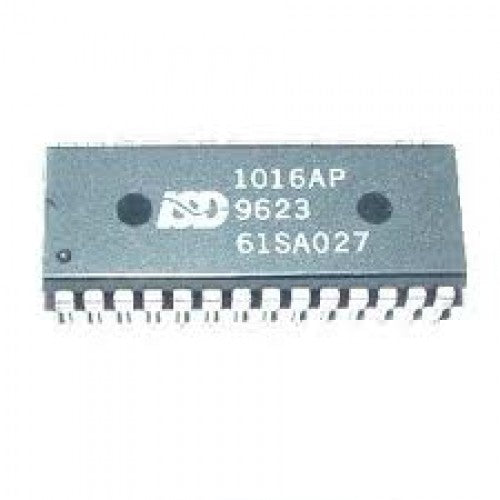

ISD1016-AP

Easy-to-use single-chip voice Record/Playback solution High-quality, natural voice/audio reproduction Manual switch or microcontroller compatible ­ Playback can be edge- or levelactivated Single-chip durations of 16 and 20 seconds Directly cascadable for longer durations Power-down mode 1 µA standby current (typical) Zero-power message storage ­ Eliminates battery backup circuits Fully addressable to handle multiple messages 100-year message retention (typical) 100,000 record cycles (typical) On-chip clock source No algorithm development required Single +5 volt supply Available in die form, DIP, and SOIC packaging Industrial temperature to +85°C) version available

Technical Specification

• Easy-to-use single-chip voice Record/Playback solution
• High-quality, natural voice/audio reproduction
• Manual switch or microcontroller compatible
  • Playback can be edge- or levelactivated
• Single-chip durations of 16 and 20 seconds
• Directly cascadable for longer durations
• Power-down mode
  • 1 µA standby current (typical)
• Zero-power message storage
  • Eliminates battery backup circuits
• Fully addressable to handle multiple messages
• 100-year message retention (typical)
• 100,000 record cycles (typical)
• On-chip clock source
• No algorithm development required
• Single +5 volt supply
