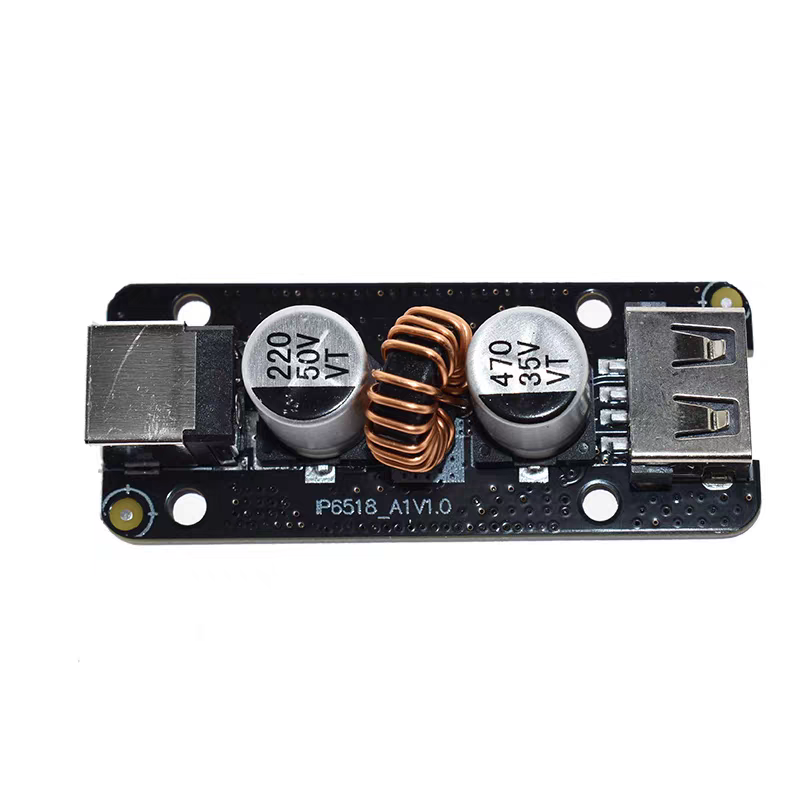

IP6518 full protocol fast charging board
IP6518 full protocol fast charging board
Couldn't load pickup availability
IP6518 full protocol fast charging board module Qualcomm QC3.0 supports Huawei MediaTek BC1.2PD Samsung Apple.
Description
Product parameters:
Input voltage range: 10.5v to 32V
Output voltage range :3V to 20V
Automatic adjustment according to quick charge protocol (input should be higher than output 2V)
Output power: 45W
Output current:
3V---3.6A
5V----3.4A
7V----3A
9V----3A
12V----3A
15V----2.3A
20V----2.3A
PD output voltage: 5V, 7V, 9V, 12V, 15V, 20V
Line complement function, 125mv/A
Conversion efficiency: 97%
Support:
BC1.2, Apple
Qualcomm QC2.0 QC3.0
Huawei FCP SCP
Mediatek MTK PE+1.1 / PE+2.0
Samsung quick charge agreement AFC
Spreadtrum fast charging protocol SFCP
Supplementary note:
1. One-plus mobile phone system upgrade, this chip no longer supports one-plus flash charging;
2. Due to the use of 5A high-current USB socket, the contact resistance is low. When huawei SCP and other low-voltage high-current charging, the charging current may exceed 3.4a and IP651 8 over-current protection phenomenon occurs.
Features & details
QC3.0 QC2.0 FCP IP6518 Full Protocol Fast Filling Board Module BC1.2PD
Prod uct information
Manufacturer Midzooparts
ASIN B09P46J2ZM
