Infrared Remote

The TSOP 1838 is a member of IR remote control receiver series. This IR sensor module consists of a PIN diode and a pre amplifier which are embedded into a single package. The output of TSOP is active low and it gives +5V in off state. When IR waves, from a source, with a centre frequency of 38 kHz incident on it, its output goes low.

This infra-red sensor can be used with both Arduino and Raspberry Pi micro-controllers.It can be used to decode infra-red signals from remote controls such as a TV remote or some RC vehicle remotes. It is especially designed to be reliable and easy to use with infra-red filters and a pre-amplifier IC built in.  The infra-red sensor is just the sensor and you will need to connect it to the appropriate input and output pins on the Arduino or Raspberry Pi for it to function. This is simple as it only has 3 connections, power, ground, and signal out.  This sensor is only a receiver and not a transmitter!

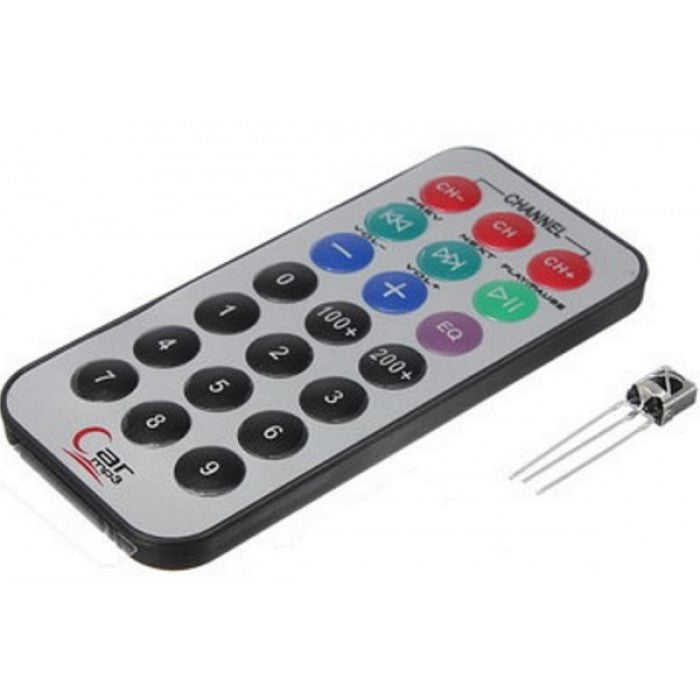

This package includes a universal remote that works with the TSOP 1838 sensor module.

FEATURES:

• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• TTL and CMOS compatibility
• Output active low
• Improved shielding against electrical field disturbance
• Suitable burst length ≥6 cycles/burst
• RoHS Compliant
• Beam Angle: 45 deg
• Carrier Frequency: 38 kHz
• Transmission Distance: 25 m
• Viewing Angle: 45 deg
• High Level Pulse Width: 0.8 ms
• Low Level Pulse Width: 0.8 ms
• Minimum High Level Output Voltage: 100 mV
• Output Current: 5 mA
• Supply Current: 700 uA
• Power Dissipation: 10 mW
• Maximum Operating Temperature: + 85 C
• Minimum Operating Temperature:  – 25 C

SPECIFICATION:

• Small size package
• Enhanced immunity against all kinds of disturbance light
• No occurrence of disturbance pulses at the output
• Short settling time after power on (<200s)
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Inner shield,good anti-interference ability
• Improved shielding against electric field disturbance
• 3.0V or 5.0V supply voltage; low power consumption
• TTL and CMOS compatibility
• 8ms data pause time codes are acceptable

-Operating Supply Voltage (Typ)                                             3.3/5V

-Operating Supply Voltage (Min)                                             3V

-Operating Supply Voltage (Max)                                             6V

-Mounting                                                                               Through Hole

-Pin Count                                                                               3
