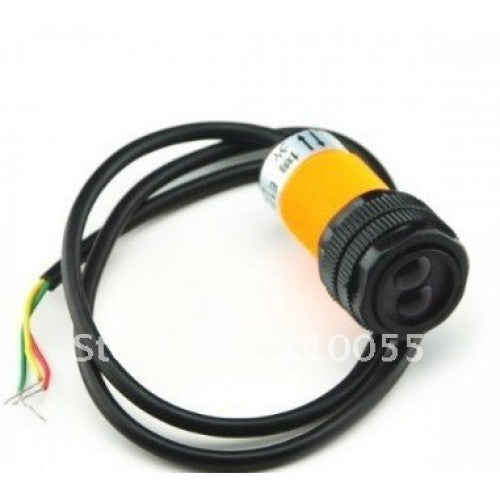

Infrared obstacle sensor E18-D80NK

Description

Transmitter and receiver in one photoelectric sensor. The sensor has an adjustable detection distance and visible light interference. The range is from 3cm to 80cm and can adjusted via an integrated potentiometer. It is easy to use and is ideal for panel mounting.

Specifications:

Input voltage: +5V DC Current consumption: > 25mA (min) ~ 100mA (max)

Dimension: 1.7cm (diameter) x 4.5cm (length) Cable length: 45cm

Detection of objects: transparent or opaque Diffuse reflective type

Sensing range: 3cm to 80cm (depends on obstacle surface)

NPN output (normally high) Environment temperature: -25 °C ~ 55 °C

Brown Wire: +5V

Blue Wire: GND

Black Wire: DIGITAL OUTPUT – Open collector pull down (Use 10K pull up resistor to +5V)
