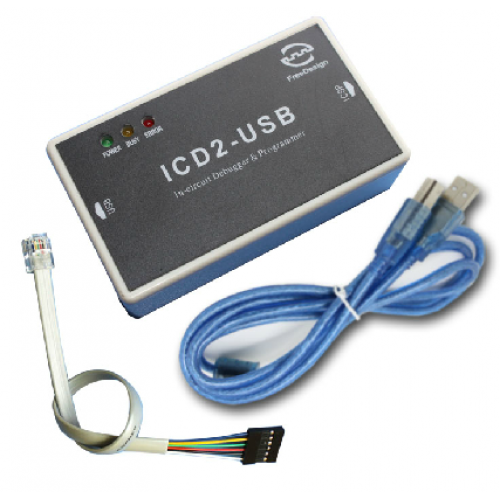

This is an all-in-one debugger/programmer solution: MPLAB® ICD 2 is a low cost, real-time debugger and programmer for selected PIC®MCUs and dsPIC® DSCs. Using Microchip Technology’s proprietary In-Circuit Debug functions, programs can be downloaded, executed in real time and examined in detail with the debug functions of MPLAB. Set watch variables and breakpoints from symbolic labels in C or assembly source code, and single step through C source lines or into assembly code. MPLAB ICD 2 can also be used as a development programmer for supported MCUs.
The MPLAB ICD 2 connects using USB or RS-232 between the design engineer’s PC operating with MPLAB IDE and their product board (target) being developed. It acts as an intelligent interface/translator between the two, allowing the engineer to look into the active target board’s microcontroller, viewing variables and registers at breakpoints with MPLAB watch windows.
Technical Specification
- USB (Full Speed 2 M bits/s) & RS-232 interface to host PC
- Real time background debugging
- MPLAB IDE GUI (free copy included)
- Built in over-voltage/short circuit monitor
- Firmware upgradeable from PC
- Totally enclosed
- Supports low voltage to 2.0 volts. (2.0 to 6.0 range)
- Diagnostic LEDs (Power, Busy, Error)
- Reading/Writing memory space and EEDATA areas of target microcontroller
- Programs configuration bits
- Erase of program memory space with verification
- Peripheral freeze-on-halt stops timers at breakpoints
